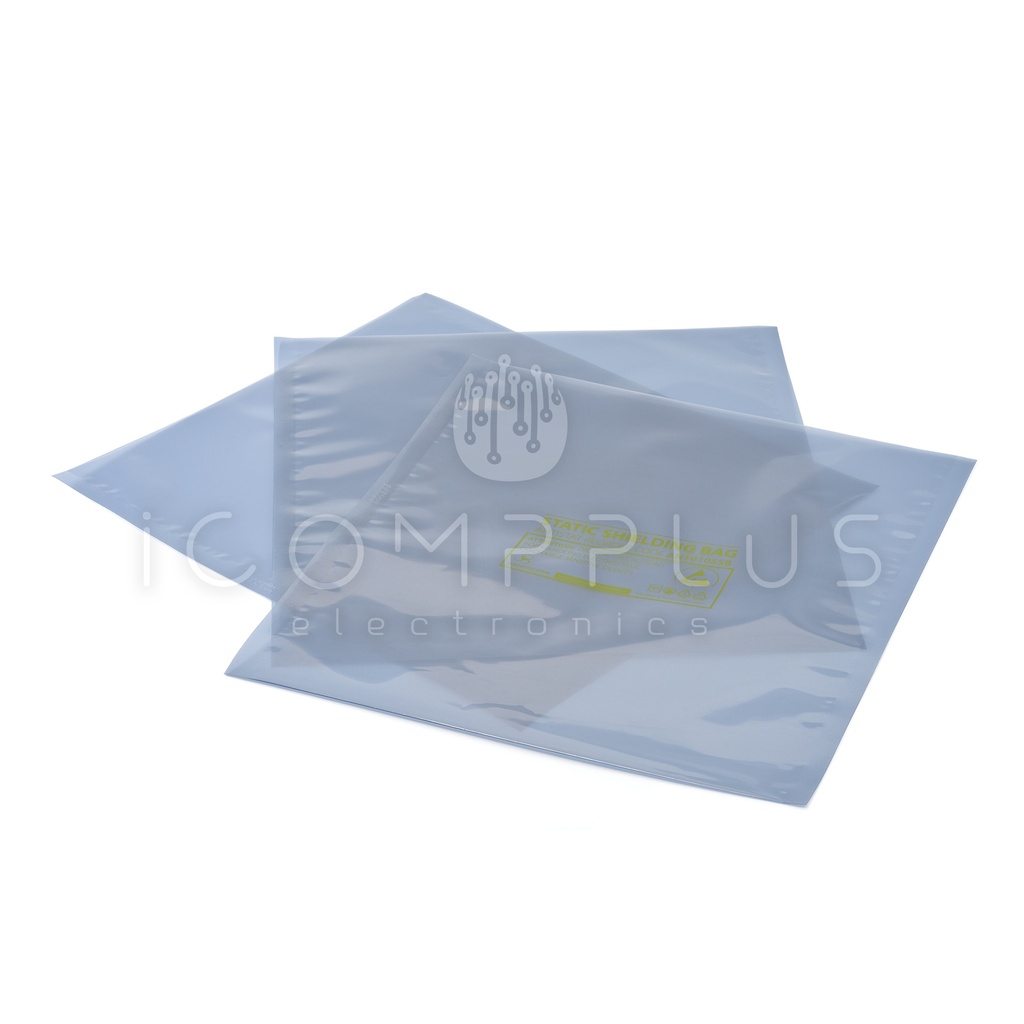

    010-0029 Shielding Bag ESD 254x305mm 75um (Pack 100units)

    010-0029 Shielding Bag ESD 254x305mm 75um (Pack 100units)

    https://icompplus.odoo.com/web/image/product.template/93048/image_1920?unique=5d7a76a

    010-0029

    Antistatic Bags

    23.42 € 23.42 EUR 23.42 €

    23.42 €

    Not Available For Sale

    • Brand
    • COO
    • RoHS
    • Type of Bag
    • Surface resistance
    • Thickness
    • Type of material
    • Rule
    • Download time
    • Quantity per package
    • Static Shielding
    • Static Shielding-Capacitive Test
    • Width
    • Accessory Type
    • Length
    • Closure Type
    • Traceability
    • Packaging
    • Reach

    This combination does not exist.

    RoHS :
    Datasheet :
    : Shielding Bag ESD 254x305mm 75um (Pack 100units)
    IN STOCK:
    THE DELIVERY WILL OCCUR WITHIN 24/48 HOURS AFTER THE STOCK ARRIVES AT OUR WAREHOUSE. View Options
    (Request a quote for large quantities or custom projects)

    TECHNICAL FEATURES

    Brand ANTISTAT
    COO CHINA
    Type of Bag Shielding Bags
    Surface resistance 10e6-10e10Ω
    Thickness 75µm
    Type of material 4-layer metallized plastic
    Rule EN 61340-2-1
    Download time < 0.03s FTMS 101B Mtd4046
    Quantity per package 100units
    Static Shielding <20nJ
    Static Shielding-Capacitive Test Less than 25V
    Width 254mm
    Accessory Type ESD Protective Bag
    Length 305mm
    Closure Type Thermal
    Packaging Bag
    Reach Yes

    PRODUCT DESCRIPTION

    Shielding Bag ESD 254x305mm 75um (Pack 100units)

    Las bolsas ESD termo sellables de ANTISTAT, son la solución perfecta para la protección de componentes o equipos electrónicos sensibles contra descargas electrostáticas (ESD) en distintos procesos tales como su almacenamiento o en su proceso de transporte. Su construcción de 4 capas es una protección perfecta contra cualquier posible carga estática. Es semitransparente, para una fácil identificación del contenido. Estas bolsas de protección estática se pueden utilizar para un almacenamiento fiable y óptimo de PCBs, circuitos integrados, placas base, componentes de ordenadores, etc...

    CONDICIONES DE TEST

    Los resultados obtenidos en las distintas pruebas llevadas a cabo se realizaron con las siguientes condiciones ambientales fijadas: Temperatura: 23ºc / Humedad: 12% HR.

    ITEM TEST METHOD TYPICAL VALUE
    Film thickness Micron Meter 3Mil 75 micron
    Metal layer optical transmission ASTM D1003 (TOBIAS) 40% +/- 5% optical density
    Surface resistance ANSI/ESD STM 11.11 - 2021 10⁶- 10¹⁰ Ω
    Time for static removal FTMS 101B Method 4046 - 5000-0V <.0.03 Sec
    Static shielding - Energy
    penetration    		 ANSI/ESD-STM-11.31 - 2018 <20 Nj
    Static shielding - Capacitive
    probe    		 ANSI / EIA 541 Appendix E <25V
    Friction static ANSI / E1A 541 Appendix C Avg. Triboelectric nanocoulombs Quartz +0.01 Tefion-0.09
    Anti-erosion FTMS 101C Method 3005 No visible spots
    Tensile strength ASTM D882-91, Method A MD 6530 psi TD 5800 psi
    Tear initiation ASTM D1004 -94-Notched MD 2.5 lbs./in TD 2.0 lbs
    Puncture resistance ASTM D3420 >10 psi
    Burst strength FTMS 101 C Method 2065.1 50 psi nominal
    Heat seal temperature __ 250 - 375 ºF
    Heat seal pressure __ 30-70 PSI
    Heat seal strength (D1876-93) Vertrod bar sealer/heat >12 lbs/in width (room temperature)
    Breaking elongation rate ASTM D882-91 Method A MD 80% TD 85%

    CONDICIONES DE TEST

    La bolsa de blindaje se ha sometido a distintas pruebas según lo conforme a la normativa de ensayo y sus requerimientos pertinentes.

    ITEM TEST METHOD MEASURED EQUIPMENT(S) MDL
    Lead (Pb) IEC 62321:2008 Ed.1 Sec.8 ICP-OES 2mg/kg
    Cadmium (Cd) IEC 62321:2008 Ed.1 Sec.8 ICP-OES 2mg/kg
    Mercury (Hg) IEC 62321:2008 Ed.1 Sec.7 ICP-OES 2mg/kg
    Hexavalent Chromium (Cr(VI)) IEC 62321:2008 Ed.1 Annex C UV-Vis 2mg/kg
    Polybrominated Biphenyls (PBBs) IEC 62321:2008 Ed.1 Annex A GC-MS 5mg/kg
    Polybrominated Diphenyl Ethers (PBDEs) IEC 62321:2008 Ed.1 Annex A GC-MS 5mg/kg
