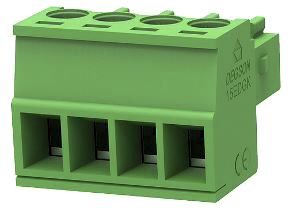

15EDGK-3.5-04P-14-00Z(H)
Description
Pluggable Terminal blocks Inominal 7A Vnominal (II/2) 250V 3 Contacts (3.5mm)
Manufacturer Ref
15EDGK-3.5-04P-14-00Z(H)
Manufacturer
Category
PCB Connection
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
DEGSON
COO
CHINA
UL Electrical Parameters - V Nominal
300V
AWG Cable Size
28~16AWG
Torque
0.2N.m
Screwdriver Type
Flat head
IEC Electrical Parameters - V Nominal
250V
Number of contacts
4
,
4
Pitch
3.5mm
Connection Type
Screw
UL Electrical Parameters - Current Rating
8A
Screw Thread
M2
IEC Electrical Parameters - Nominal Current
7A
Gender
Female
,
Female
Connection Address
0º
IEC Electrical Parameters - Transient Nominal Voltage
2.5KV
Packaging
Box
Standard Package
200
ADDITIONAL INFORMATION
Pluggable Terminal blocks Inominal 7A Vnominal (II/2) 250V 3 Contacts (3.5mm)
PRODUCT DOCUMENTATION
Datasheet
71423-71493.pdfPURCHASE INFORMATION
