    15EDGK-3.81-03P-14-00Z(H)
    15EDGK-3.81-03P-14-00Z(H)

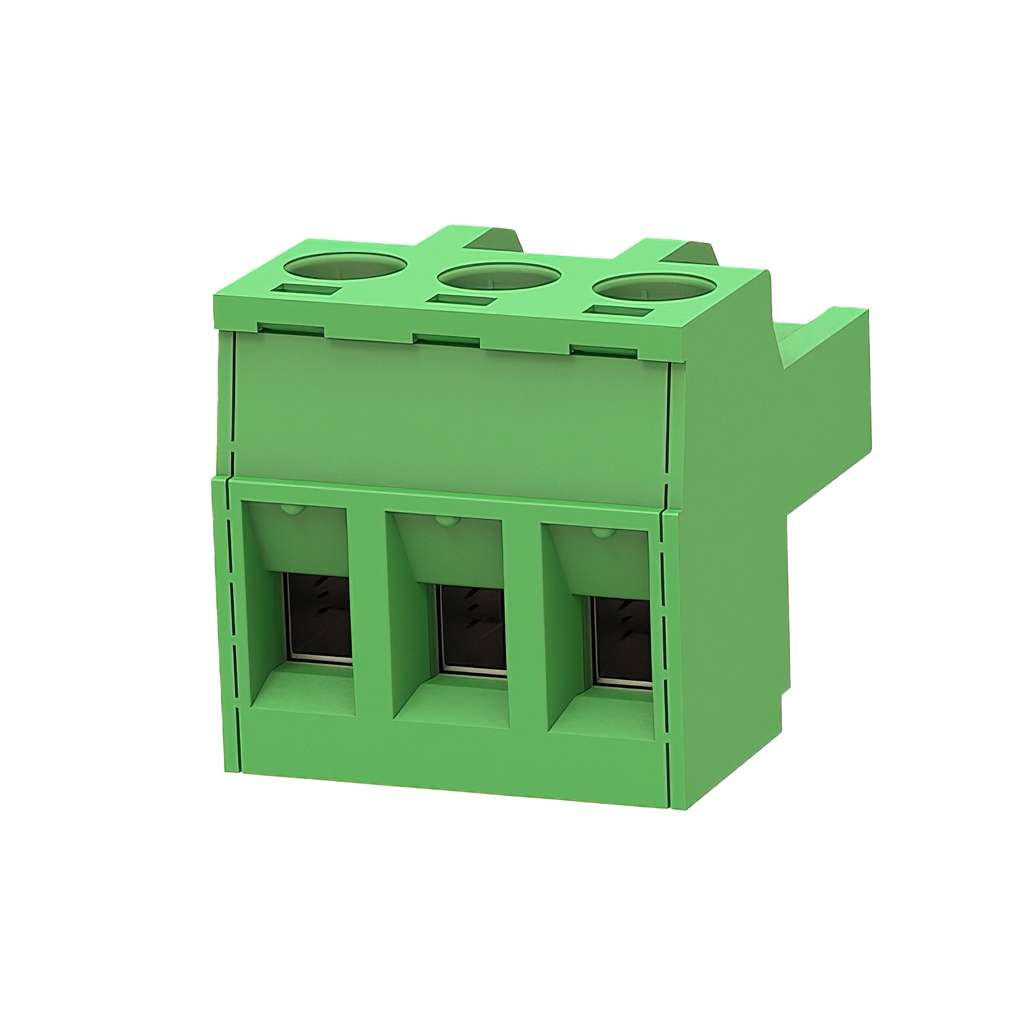

    Image is for illustrative purposes only. Refer to the product specifications.
    Description
    Bloque de terminales de conexión, I nominal: 7A. V nominal (II/2): 250V, 3 Polos (3.81mm)
    Manufacturer Ref
    15EDGK-3.81-03P-14-00Z(H)
    Manufacturer
    DEGSON
    Category
    PCB Connection
    RoHS Status
    RoHS Compliant
    Download technical datasheet
    TECHNICAL SPECIFICATIONS
    Brand
    DEGSON
    UL Electrical Parameters - V Nominal
    300V
    AWG Cable Size
    28~16AWG
    Torque
    0.2N.m
    Screwdriver Type
    Flat head
    IEC Electrical Parameters - V Nominal
    250V
    Number of contacts
    3
    Pitch
    3.81mm
    Connection Type
    Screw
    UL Electrical Parameters - Current Rating
    8A
    Screw Thread
    M2
    IEC Electrical Parameters - Nominal Current
    7A
    Gender
    Female
    Connection Address
    0º
    Ambient Temperature Range
    -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage
    2.5KV
    Packaging
    Bag
    Standard Package
    200
    ADDITIONAL INFORMATION

    Bloque de terminales de conexión, I nominal: 7A. V nominal (II/2): 250V, 3 Polos (3.81mm)
    PRODUCT DOCUMENTATION
    PURCHASE INFORMATION
    Shipment in 24/48h from the arrival at our warehouse. See more information about shipping
    Secure payment options.
    IN STOCK: 3972

      This combination does not exist.

      Unit Price: 0.37 € Total Price:
      0.37 € 0.37 EUR 0.37 €

      0.37 €
