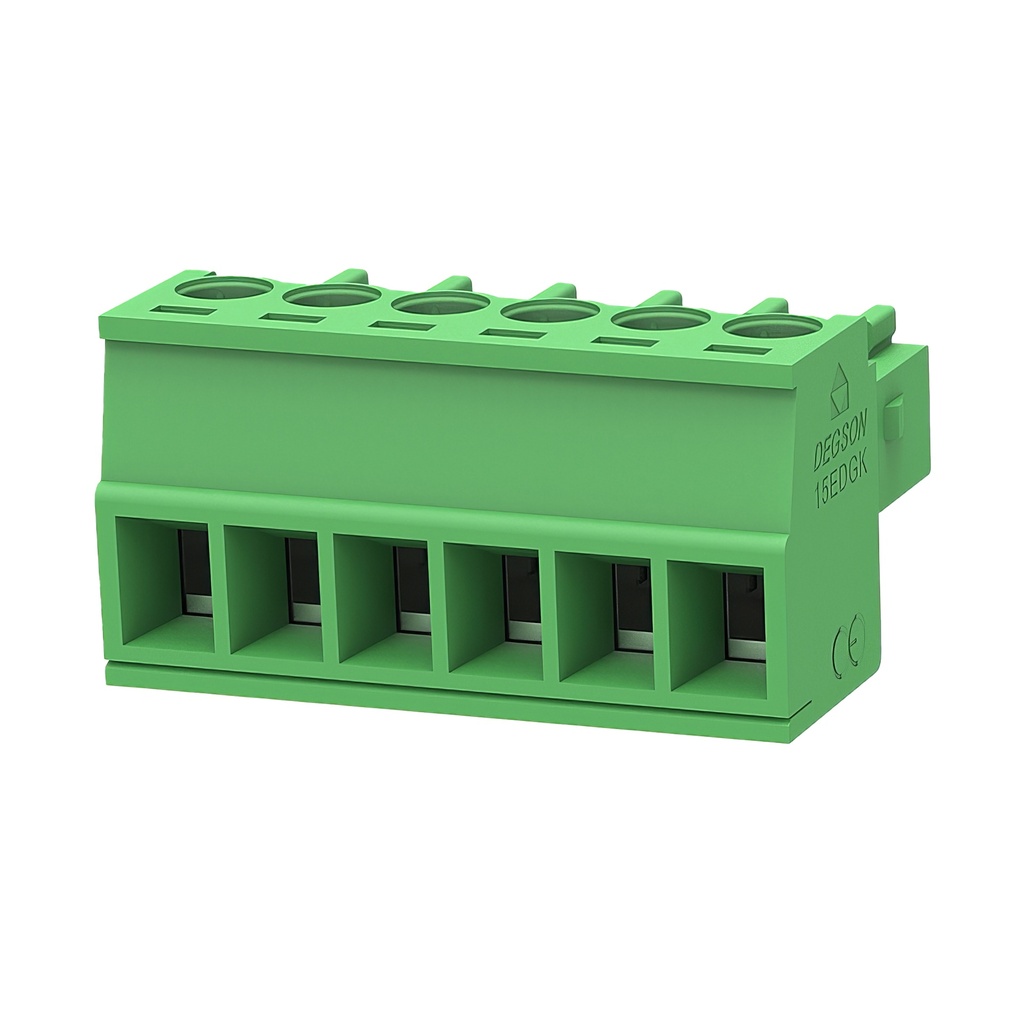

    15EDGK-3.81-06P-14-00Z(H) Pluggable terminal blocks Inominal 7A Vnominal (II/2) 250V 6 Contacts (3.81mm)

    15EDGK-3.81-06P-14-00Z(H) Pluggable terminal blocks Inominal 7A Vnominal (II/2) 250V 6 Contacts (3.81mm)

    https://icompplus.odoo.com/web/image/product.template/90743/image_1920?unique=58653b0

    15EDGK-3.81-06P-14-00Z(H)

    PCB Connection

    0.42 € 0.42 EUR 0.42 €

    0.42 €

    Not Available For Sale

    • Brand
    • COO
    • RoHS
    • UL Electrical Parameters - V Nominal
    • AWG Cable Size
    • Torque
    • Screwdriver Type
    • IEC Electrical Parameters - V Nominal
    • Number of Contacts
    • Pitch
    • Connection Type
    • Screw Thread
    • IEC Electrical Parameters - Nominal Current
    • Gender
    • Connection Address
    • Ambient Temperature Range
    • IEC Electrical Parameters - Transient Nominal Voltage
    • Traceability
    • Packaging
    • Standard Package

    This combination does not exist.

    RoHS :
    Datasheet :
    : Pluggable terminal blocks Inominal 7A Vnominal (II/2) 250V 6 Contacts (3.81mm)
    IN STOCK:
    THE DELIVERY WILL OCCUR WITHIN 24/48 HOURS AFTER THE STOCK ARRIVES AT OUR WAREHOUSE. View Options
    (Request a quote for large quantities or custom projects)

    TECHNICAL FEATURES

    Brand DEGSON
    COO CHINA
    UL Electrical Parameters - V Nominal 300V
    AWG Cable Size 28~16AWG
    Torque 0.2N.m
    Screwdriver Type Flat head
    IEC Electrical Parameters - V Nominal 250V
    Number of Contacts 6
    Pitch 3.81mm
    Connection Type Screw
    Screw Thread M2
    IEC Electrical Parameters - Nominal Current 7A
    Gender Female
    Connection Address 0º
    Ambient Temperature Range -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage 2.5KV
    Packaging Bag
    Standard Package 200

    PRODUCT DESCRIPTION

    Pluggable terminal blocks Inominal 7A Vnominal (II/2)250V 6 Contacts (3.81mm)

    PRODUCT DOCUMENTATION

    Datasheet
