    15EDGKA-3.5-04P-14-100Z(H)
    15EDGKA-3.5-04P-14-100Z(H)

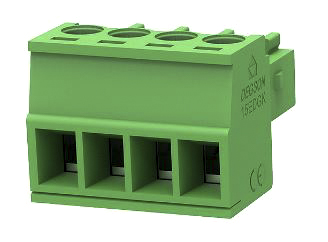

    Image is for illustrative purposes only. Refer to the product specifications.
    Description
    Conector
    Manufacturer Ref
    15EDGKA-3.5-04P-14-100Z(H)
    Manufacturer
    DEGSON
    Category
    PCB Connection
    RoHS Status
    RoHS Compliant
    Download technical datasheet
    TECHNICAL SPECIFICATIONS
    UL Electrical Parameters - V Nominal
    300V
    Torque
    0.4N.m
    Screwdriver Type
    Flat head
    IEC Electrical Parameters - V Nominal
    250V
    Number of contacts
    4
    Pitch
    3.5mm
    Connection Type
    Screw
    UL Electrical Parameters - Current Rating
    8A
    Screw Thread
    M2
    IEC Electrical Parameters - Nominal Current
    7A
    Gender
    Female
    Connection Address
    0º
    Ambient Temperature Range
    -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage
    2.5KV
    Packaging
    Bag , Reel
    ADDITIONAL INFORMATION

    Bloque de terminales de conexión, I nominal: 7A. V nominal (II/2): 250V, 4 Polos (3.5mm)
