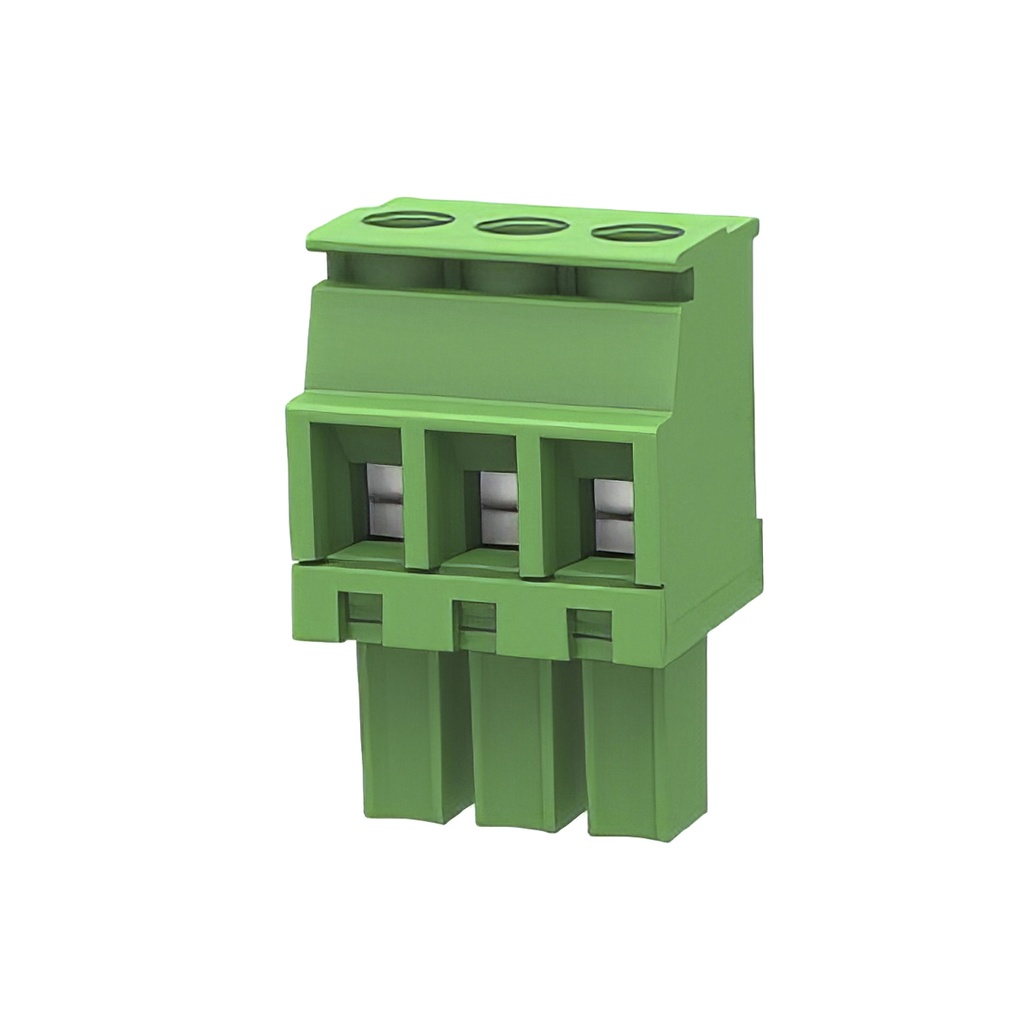

    15EDGKB-3.5-03P-14-100Z(H) Pluggable Terminal blocks Inominal7A Vnominal (III/2) 250V 3 Contacts (pitch:3.5mm)

    15EDGKB-3.5-03P-14-100Z(H) Pluggable Terminal blocks Inominal7A Vnominal (III/2) 250V 3 Contacts (pitch:3.5mm)

    https://icompplus.odoo.com/web/image/product.template/94609/image_1920?unique=26a2a0c

    15EDGKB-3.5-03P-14-100Z(H)

    PCB Connection

    0.40 € 0.4 EUR 0.40 €

    0.40 €

    Not Available For Sale

    • Brand
    • COO
    • RoHS
    • UL Electrical Parameters - V Nominal
    • AWG Cable Size
    • Screwdriver Type
    • IEC Electrical Parameters - V Nominal
    • Number of Contacts
    • Pitch
    • Connection Type
    • UL Electrical Parameters - Current Rating
    • Screw Thread
    • IEC Electrical Parameters - Nominal Current
    • Ambient Temperature Range
    • IEC Electrical Parameters - Transient Nominal Voltage
    • Traceability
    • Packaging
    • Standard Package
    • Reach

    This combination does not exist.

    RoHS :
    Datasheet :
    : Pluggable Terminal blocks Inominal7A Vnominal (III/2) 250V 3 Contacts (pitch:3.5mm)
    IN STOCK:
    THE DELIVERY WILL OCCUR WITHIN 24/48 HOURS AFTER THE STOCK ARRIVES AT OUR WAREHOUSE. View Options
    (Request a quote for large quantities or custom projects)

    TECHNICAL FEATURES

    Brand DEGSON
    COO CHINA
    UL Electrical Parameters - V Nominal 300V
    AWG Cable Size 28~12AWG
    Screwdriver Type Flat head
    IEC Electrical Parameters - V Nominal 320V
    Number of Contacts 3
    Pitch 3.5mm
    Connection Type Screw
    UL Electrical Parameters - Current Rating 8A
    Screw Thread M3
    IEC Electrical Parameters - Nominal Current 7A
    Ambient Temperature Range -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage 2.5KV
    Packaging Bag
    Standard Package 200
    Reach Yes

    PRODUCT DESCRIPTION

    Pluggable Terminal blocks Inominal7A Vnominal (III/2) 250V 3 Contacts (pitch:3.5mm)


    Connection capacity
    Conductor cross section solid 0.5~1.5mm²
    Conductor cross section flexible 0.5~1.5mm²
    AWG 28~16AWG
    Torque 0.2N.m
    Strip length 7mm

    Electrical parameters UL
    Rated voltage (B) 300V
    Rated voltage (D) 300V
    Rated current (B) 8A
    Rated current (D) 8A

    Electrical parameters IEC
    Rated voltage 250V
    Rated current 7A
    Rated voltage(II/2) 250V
    Rated surge voltage(II/2) 2.5KV

    Item properties
    Connection direction 90°
    Connection method Screw connection
    Screwdriver Slotted screwdriver
    screw thread M2
    Pitch 3.5mm
    Number of potentials 3
    Pluggable or not Yes
    Number of rows 1

    Material data
    Environmental items Compliant with REACH/RoHS
    Contact material Copper alloy
    Contact point metal surface Nickel plating
    Contact zone metal surface tin-plated
    Insulation Materials PA66
    Insulating material group I
    Flammability rating UL94V-0

    Mechanical tests
    Test Specification IEC61984/ UL1059

    Environmental data
    Ambient temperature (operation)  -40ºC~105ºC (depending on derating curve)
