1700/16 100SF
Description

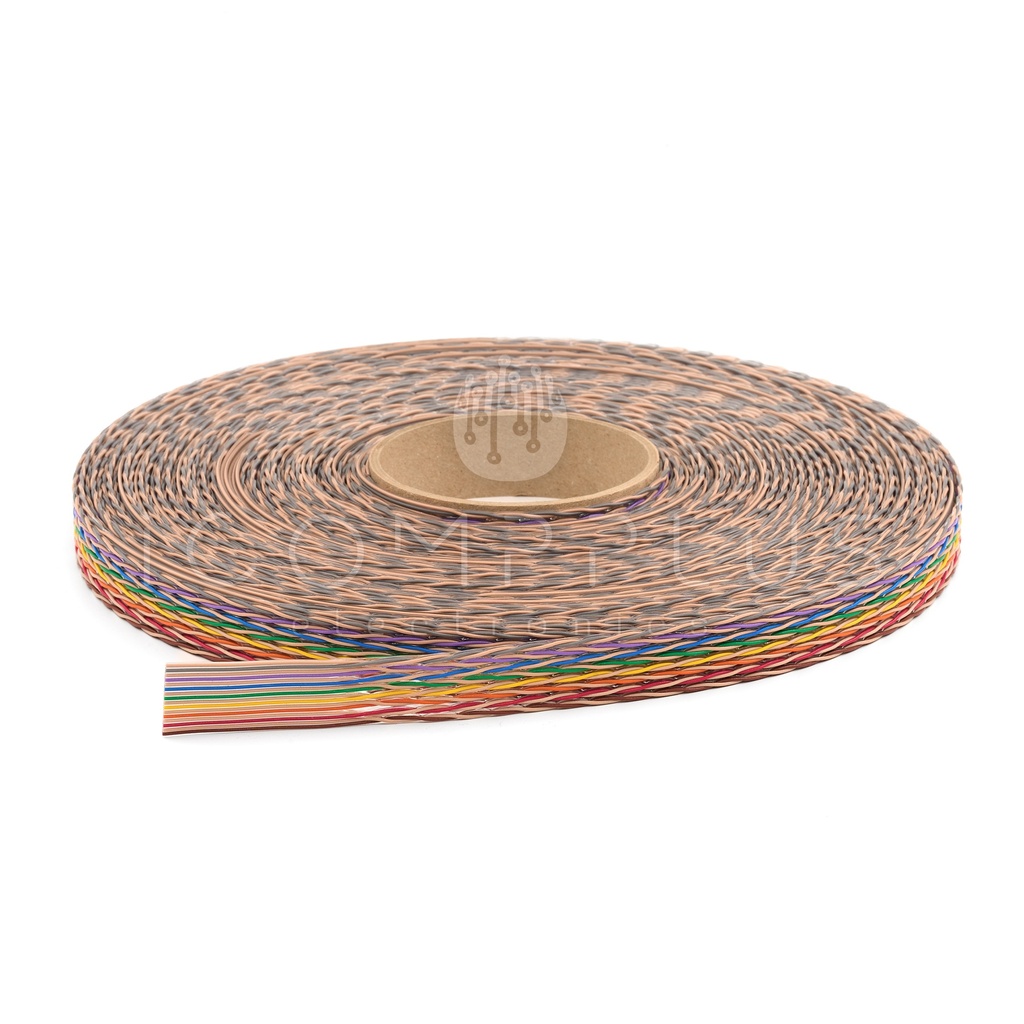

Flat cable
Manufacturer Ref
1700/16 100SF
Category
Flat Ribbon Cable
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
3M
Type
Braided
Conductive Thread
7 x 36
Cable Size
28AWG
Insulation Color
Multicolor
Insulation Material
PVC
Temperature Range
-20°C / + 105°C
Voltage Classification
300V
Conductor Material
Tinned Copper
Cable Length
30.48m
Pitch
1.27mm
Number of Drivers
16
Packaging
Box
MSL
1
ADDITIONAL INFORMATION
Cable Cinta plano 16 conductores 36AWG
| Voltage máximo | 300V |
| Color de aislamiento | Gris |
| Material de aislamiento | PVC |
| Número de conductores | 16 |
| Cumplimiento | UL |
| Inflaablidad máx | UL 224 VW-1 |
| Paso (métrico) | 1.27 mm |
| Tamaño de cable | 28AWG |
| Tipo de cable | Trenzado |
| Longitud total | 30m |
| Trenzado | 7 x 36 |
| Material del conductor | Cobre Estañado |
| Temperatura de Trabajo | - 20 C / +105 C |
| Peso por unidad | 1.176Kg |
| RoHS | Sí |
PRODUCT DOCUMENTATION
Datasheet
9407-9406.pdfPURCHASE INFORMATION
