2EDGKC-5.0-08P-14-00Z(H)
Description

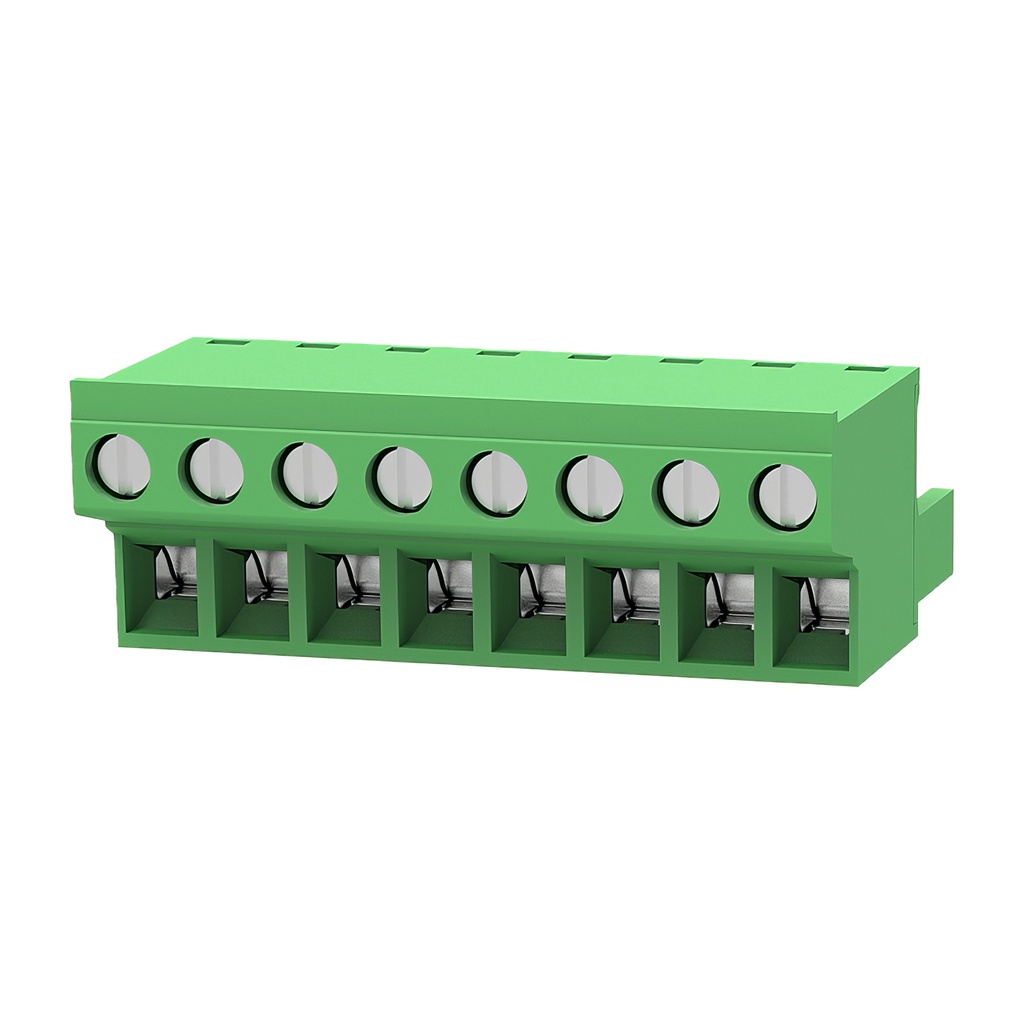

Bloque de terminales 8POS
Manufacturer Ref
2EDGKC-5.0-08P-14-00Z(H)
Manufacturer
Category
PCB Connection
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
DEGSON
COO
CHINA
UL Electrical Parameters - V Nominal
300V/150V
AWG Cable Size
28~12AWG
Torque
0.5N.m
Screwdriver Type
Flat head
IEC Electrical Parameters - V Nominal
320V
Number of contacts
8
Pitch
5.00mm
Connection Type
Screw
UL Electrical Parameters - Current Rating
15A/10A/15A
Screw Thread
M2.5
IEC Electrical Parameters - Nominal Current
20A
Gender
Female
Connection Address
90º
Ambient Temperature Range
-40ºC~105ºC
IEC Electrical Parameters - Transient Nominal Voltage
2.5KV
Packaging
Box
Standard Package
500
ADDITIONAL INFORMATION
Bloque de terminales de conexión Inominal 20A Vnominal (III/2) 320V 8 Polos (5.0mm)
PRODUCT DOCUMENTATION
Datasheet
