    2EDGKCM-5.08-02P-14-00Z(H)
    2EDGKCM-5.08-02P-14-00Z(H)

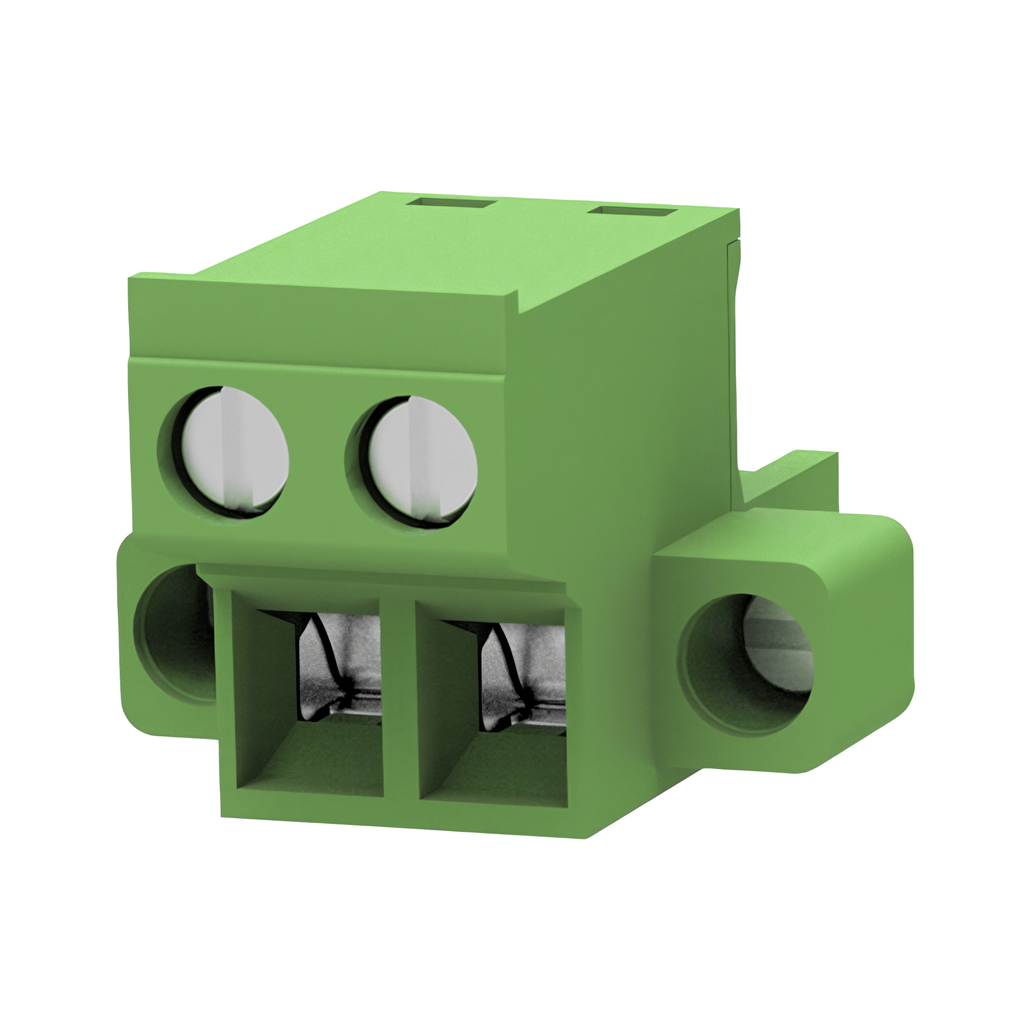

    Image is for illustrative purposes only. Refer to the product specifications.
    Description
    Pluggable Terminal blocks Inominal 20A Vnominal (III/2) 320V 2 Contacts (5.08mm)
    Manufacturer Ref
    2EDGKCM-5.08-02P-14-00Z(H)
    Manufacturer
    DEGSON
    Category
    PCB Connection
    RoHS Status
    RoHS Compliant
    Download technical datasheet
    TECHNICAL SPECIFICATIONS
    Brand
    DEGSON
    COO
    CHINA
    UL Electrical Parameters - V Nominal
    300V/150V
    AWG Cable Size
    28~12AWG
    Screwdriver Type
    Flat head
    IEC Electrical Parameters - V Nominal
    320V
    Number of contacts
    8
    Pitch
    5.08mm
    Connection Type
    Screw
    UL Electrical Parameters - Current Rating
    15A/10A/15A
    Screw Thread
    M3
    IEC Electrical Parameters - Nominal Current
    20A
    Gender
    Female
    Connection Address
    90º
    Ambient Temperature Range
    -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage
    4KV
    Packaging
    Box
    Standard Package
    100
    Reach
    Yes
    ADDITIONAL INFORMATION

    Pluggable Terminal blocks Inominal 20A Vnominal (III/2) 320V 2 Contacts (5.08mm)
