    2EDGKR-5.08-03P-14-00Z(H)
    2EDGKR-5.08-03P-14-00Z(H)

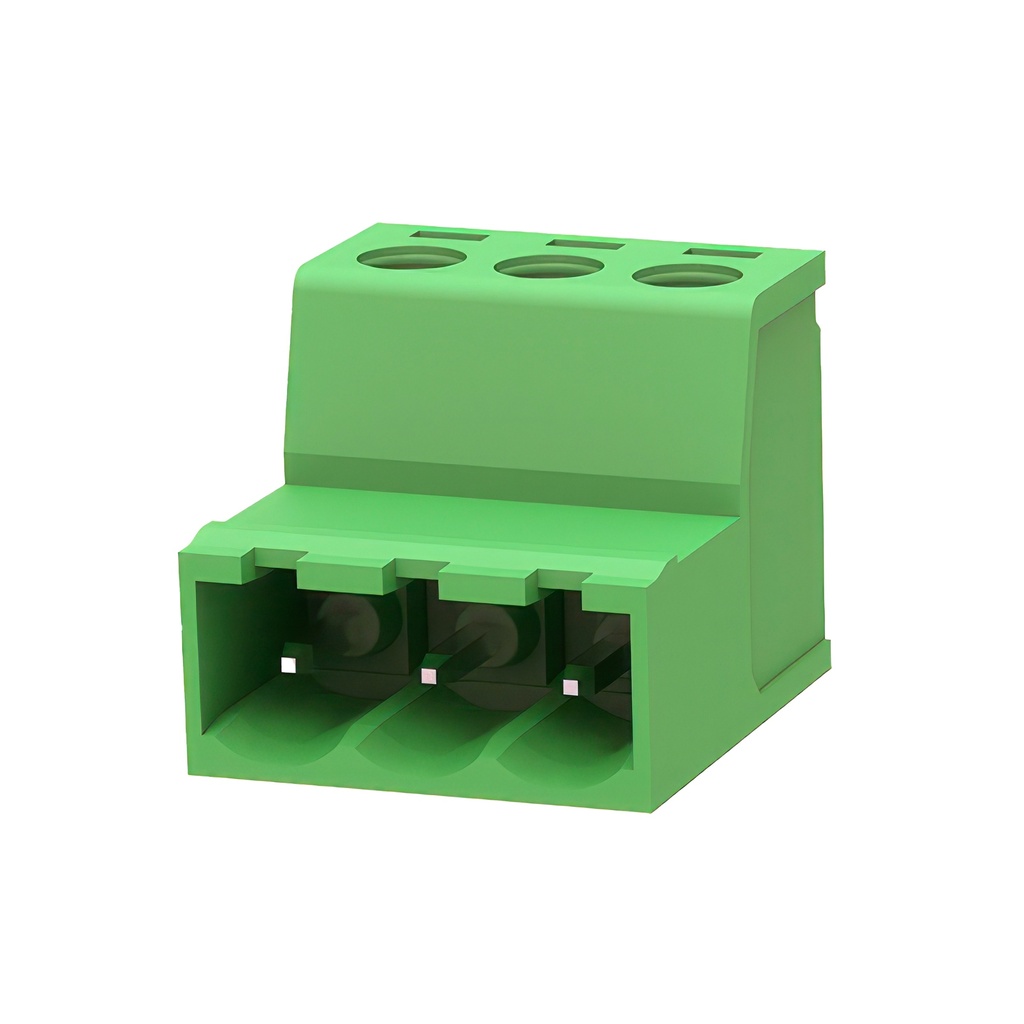

    Image is for illustrative purposes only. Refer to the product specifications.
    Description
    Pluggable Terminal blocks Inominal 20A Vnominal (III/2) 320V 3 Polos (5.08mm)
    Manufacturer Ref
    2EDGKR-5.08-03P-14-00Z(H)
    Manufacturer
    DEGSON
    Category
    PCB Connection
    RoHS Status
    RoHS Compliant
    Download technical datasheet
    TECHNICAL SPECIFICATIONS
    Brand
    DEGSON
    COO
    CHINA
    UL Electrical Parameters - V Nominal
    300V
    AWG Cable Size
    28~12AWG
    Torque
    0.4N.m
    Screwdriver Type
    Flat head
    IEC Electrical Parameters - V Nominal
    320V
    Number of contacts
    3
    Pitch
    5.08mm
    Connection Type
    Screw
    Screw Thread
    M2.5
    IEC Electrical Parameters - Nominal Current
    20A
    Gender
    Female
    Connection Address
    0º
    Ambient Temperature Range
    -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage
    2.5KV
    Packaging
    Bag
    Standard Package
    100
    Reach
    Yes
    ADDITIONAL INFORMATION

    Pluggable Terminal blocks Inominal 20A Vnominal (III/2) 320V 3 Polos (5.08mm)
    PRODUCT DOCUMENTATION
    PURCHASE INFORMATION
    Shipment in 24/48h from the arrival at our warehouse. See more information about shipping
    Secure payment options.
    IN STOCK: 300

      This combination does not exist.

      Unit Price: 0.65 € Total Price:
      0.65 € 0.65 EUR 0.65 €

      0.65 €

      Not Available For Sale
