677-532-21
Description

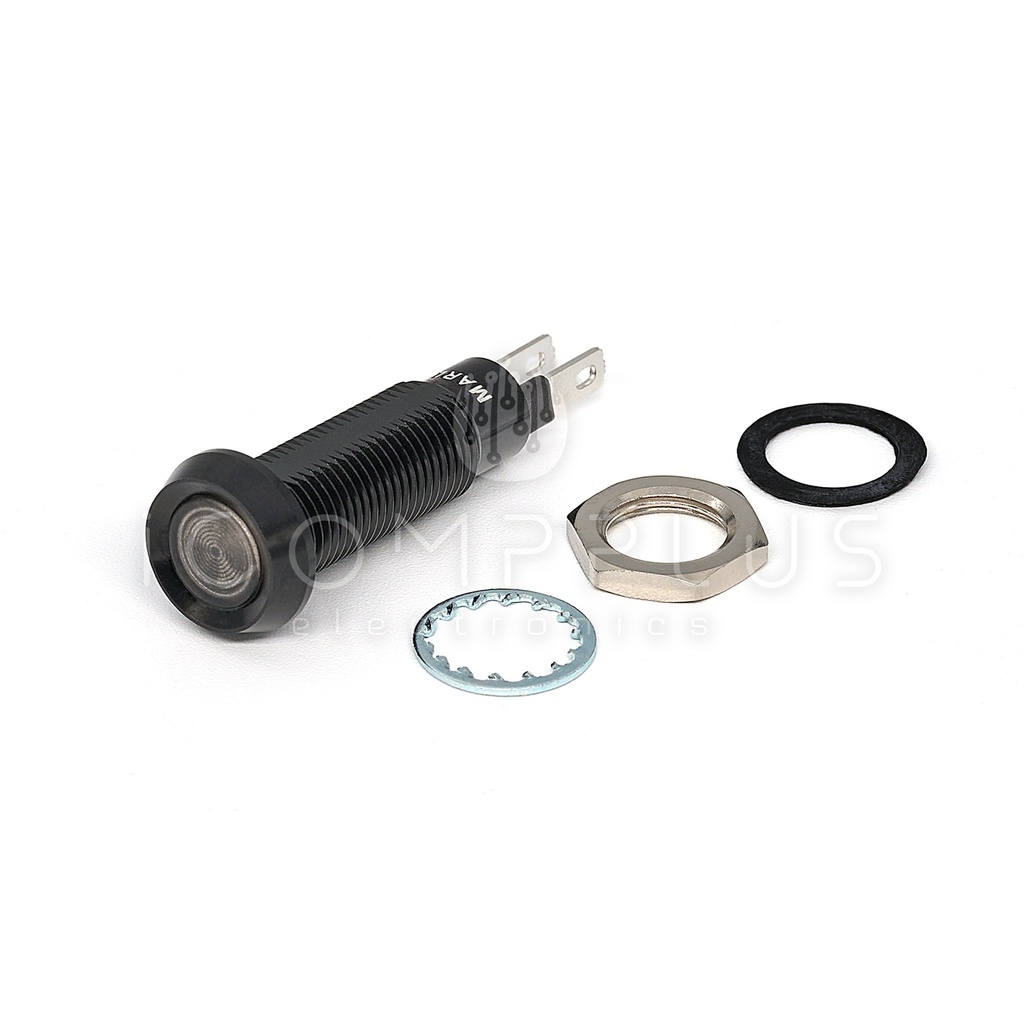

Indicator LED Green 8,1mm12VDC IP67
Manufacturer Ref
677-532-21
Manufacturer
Category
LED Panel Indicators
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
MARL INTERNATIONAL
COO
UNITED KINGDOM
Current Range
15mA
Type
Panel sellado
Wavelength
520nm
Temperature Range
-40°C / + 75°C
LED diameter
7mm
Colour
Green
Body color
Black
IP Protection
IP67
Luminous Intensity
1815mcd
Serie
677
Body material
Anodized aluminum
Inverse voltage Max
1000VDC
Voltage Range
12VDC
Mounting Diameter
8mm
Packaging
Bag
ADDITIONAL INFORMATION
Indicator LED Green 8,1mm12VDC IP67
The 677 Series LED Panel Indicators are designed to offer the most optimal lighting conditions and weatherproof sealing. It is suitable for portable and outdoor applications.
FEATURES |
| Ø8.1mm mounting |
| Black anodised aluminium housing |
| Sealed to IP67 - weatherproof |
| Wide viewing angle - smoked lens |
| Internal potting |
| Reverse protection diode fitted in all voltage models |
| Range of LED colour options |
BENEFITS |
| 'D' mounting hole aids anti-rotation |
| Suitable for portable equipment |
| Suitable for external applications |
| Smoked lens gives good on/off contrast ratio |
| Suitable for high vibration applications |
| Protects against wrong polarity installation (voltage models) |
| Suitable for status panel indication |
| Manufactured with internal resistor (voltage models) |
| Outstanding reliability |
Vandal resistant |
| Series | Series Max. Power Dissipation | Panel Cutout | Nut MountingTorque | Min. MountingCentres | Min - Max. Panel Thickness |
| 677 | 700 mW | 8.1mm | 0.6Nm | 14.5mm | 1.5 - 13.0 mm |
PRODUCT DOCUMENTATION
Datasheet
