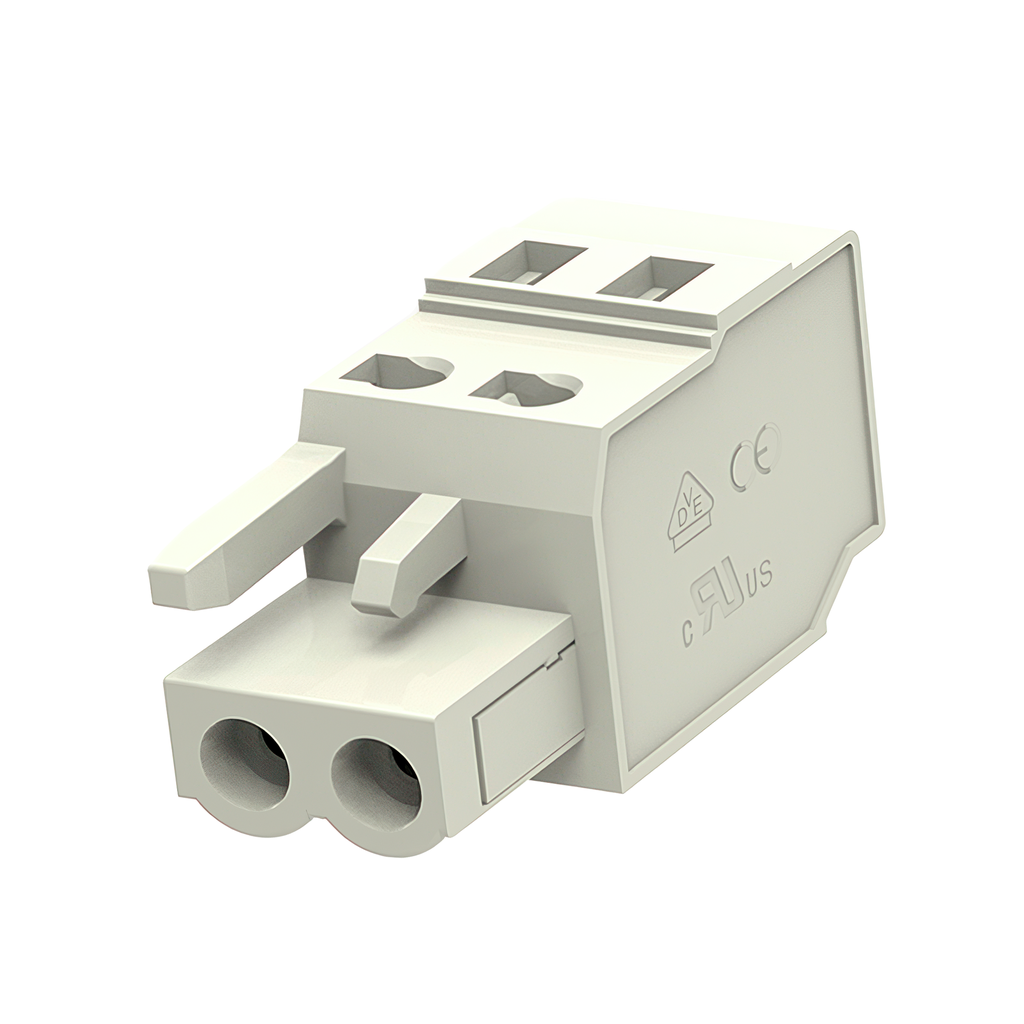

    8EDGK-5.0-02P-11-1001Z(H) Pluggable Terminal blocks Inominal 20A Vnominal (III/3) 320V 2 Contacts (5.0mm)

    8EDGK-5.0-02P-11-1001Z(H) Pluggable Terminal blocks Inominal 20A Vnominal (III/3) 320V 2 Contacts (5.0mm)

    https://icompplus.odoo.com/web/image/product.template/99915/image_1920?unique=58653b0

    8EDGK-5.0-02P-11-1001Z(H)

    PCB Connection

    0.80 € 0.8 EUR 0.80 €

    0.80 €

    Not Available For Sale

    • Brand
    • COO
    • RoHS
    • UL Electrical Parameters - V Nominal
    • AWG Cable Size
    • IEC Electrical Parameters - V Nominal
    • Number of Contacts
    • Pitch
    • Connection Type
    • UL Electrical Parameters - Current Rating
    • IEC Electrical Parameters - Nominal Current
    • Gender
    • Connection Address
    • Ambient Temperature Range
    • IEC Electrical Parameters - Transient Nominal Voltage
    • Packaging
    • Standard Package
    • Reach

    This combination does not exist.

    RoHS :
    Datasheet :
    : Pluggable Terminal blocks Inominal 20A Vnominal (III/3) 320V 2 Contacts (5.0mm)
    IN STOCK:
    THE DELIVERY WILL OCCUR WITHIN 24/48 HOURS AFTER THE STOCK ARRIVES AT OUR WAREHOUSE. View Options
    (Request a quote for large quantities or custom projects)

    TECHNICAL FEATURES

    Brand DEGSON
    COO CHINA
    UL Electrical Parameters - V Nominal 300V/150V
    AWG Cable Size 22~14AWG
    IEC Electrical Parameters - V Nominal 320V
    Number of Contacts 2
    Pitch 5.00mm
    Connection Type Spring-Cage
    UL Electrical Parameters - Current Rating 15A/10A/15A
    IEC Electrical Parameters - Nominal Current 20A
    Gender Female
    Connection Address 0º
    Ambient Temperature Range -40ºC~105ºC
    IEC Electrical Parameters - Transient Nominal Voltage 4KV
    Packaging Box
    Standard Package 100
    Reach Yes

    PRODUCT DESCRIPTION

    Pluggable Terminal blocks Inominal 20A Vnominal (III/3) 320V 2 Contacts (5.0mm)

    Connection capacity
    Conductor cross section solid 0.2~2.5mm²
    Conductor cross section flexible 0.2~2.5mm²
    AWG 22~14AWG
    Strip length 9mm

    Electrical parameters UL
    Rated voltage (B) 300V
    Rated voltage (C) 150V
    Rated voltage (D) 300V
    Rated current (B) 15A
    Rated current (D) 10A
    Rated current (C) 15A

    Electrical parameters IEC
    Rated voltage 320V
    Rated voltage(III/3) 320V
    Rated current 20A
    Rated surge voltage(III/3) 4KV

    Item properties
    Connection direction 0°
    Connection method spring-cage connection
    Pitch 5mm
    Number of potentials 2
    Pluggable or not Yes
    Number of rows 1

    Material data
    Environmental items Compliant with REACH/RoHS
    Contact material copper
    Contact point metal surface tin-plated
    Contact zone metal surface tin-plated
    Insulation Materials PA66
    Insulating material group Ⅰ
    Flammability rating UL94V-0

    Mechanical tests

    Test Specification

    		 IEC61984/ UL1059

    Environmental data
    Ambient temperature (operation) -40℃~105℃(depending on derating curve)
