    LTC 1000-S/SP2

    LTC 1000-S/SP2

    https://icompplus.odoo.com/web/image/product.template/100356/image_1920?unique=2600f56

    LTC 1000-S/SP2

    Sensores de Corriente

    322.45 € 322.45 EUR 322.45 €

    322.45 €

    Not Available For Sale

    • Brand
    • COO
    • RoHS
    • Mounting
    • Operating Temperature
    • Nominal signal type
    • Supply voltage type
    • Primary current measuring range
    • Sensor type
    • Precision
    • Nominal Value
    • Supply Voltage Range
    • Secondary Nominal Signal Value
    • Measurement
    • Technology
    • Traceability
    • Packaging
    • Standard Package

    This combination does not exist.

    RoHS :
    Datasheet :
    : Current Sensor 1000A
    IN STOCK:
    THE DELIVERY WILL OCCUR WITHIN 24/48 HOURS AFTER THE STOCK ARRIVES AT OUR WAREHOUSE. View Options
    (Request a quote for large quantities or custom projects)

    TECHNICAL FEATURES

    Brand LEM
    COO GERMANY
    Mounting Panel
    Operating Temperature –40 °C ~ +85 °C
    Nominal signal type Current
    Supply voltage type DC External Bipolar
    Primary current measuring range 2400A
    Sensor type Current Transducer
    Precision 0.4%
    Nominal Value 1000A
    Supply Voltage Range 15-24V
    Secondary Nominal Signal Value Instantaneous 200mA
    Measurement Current
    Technology Hall Efect
    Packaging Bag
    Standard Package 6

    PRODUCT DESCRIPTION

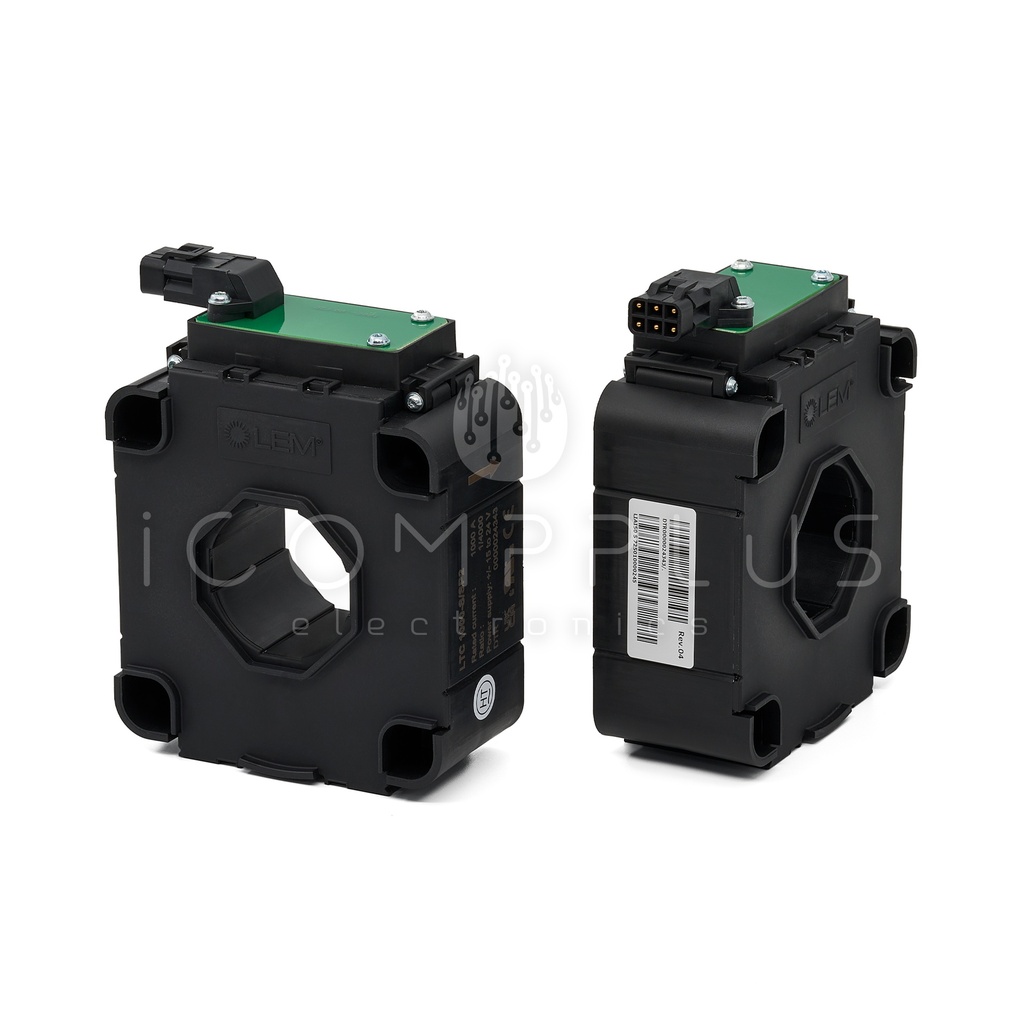

    Current Sensor 1000A

    The current Sensor LTC 1000-S/SP2 for the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit.

    Features
    Closed loop (compensated)
    current transducer using the Hall
    effect
    Insulating plastic case recognized
    according to UL 94-V0
    Special features
    NP/NS = 1 : 4000
    No DTR 0000024343
    Connection of secondary on Burndy 6 poles SMS6GE6

    Advantages
    Excellent accuracy
    Very good linearity
    Low temperature drift
    Optimized response time
    Wide frequency bandwidth
    No insertion losses
    High immunity to external interference
    Current overload capability

    Applications
    Single or three phase inverters
    Propulsion and braking choppers
    Propulsion converters
    Auxiliary converters
    Battery chargers


    PRODUCT DOCUMENTATION

    Datasheet
