PR1KCO28
Description

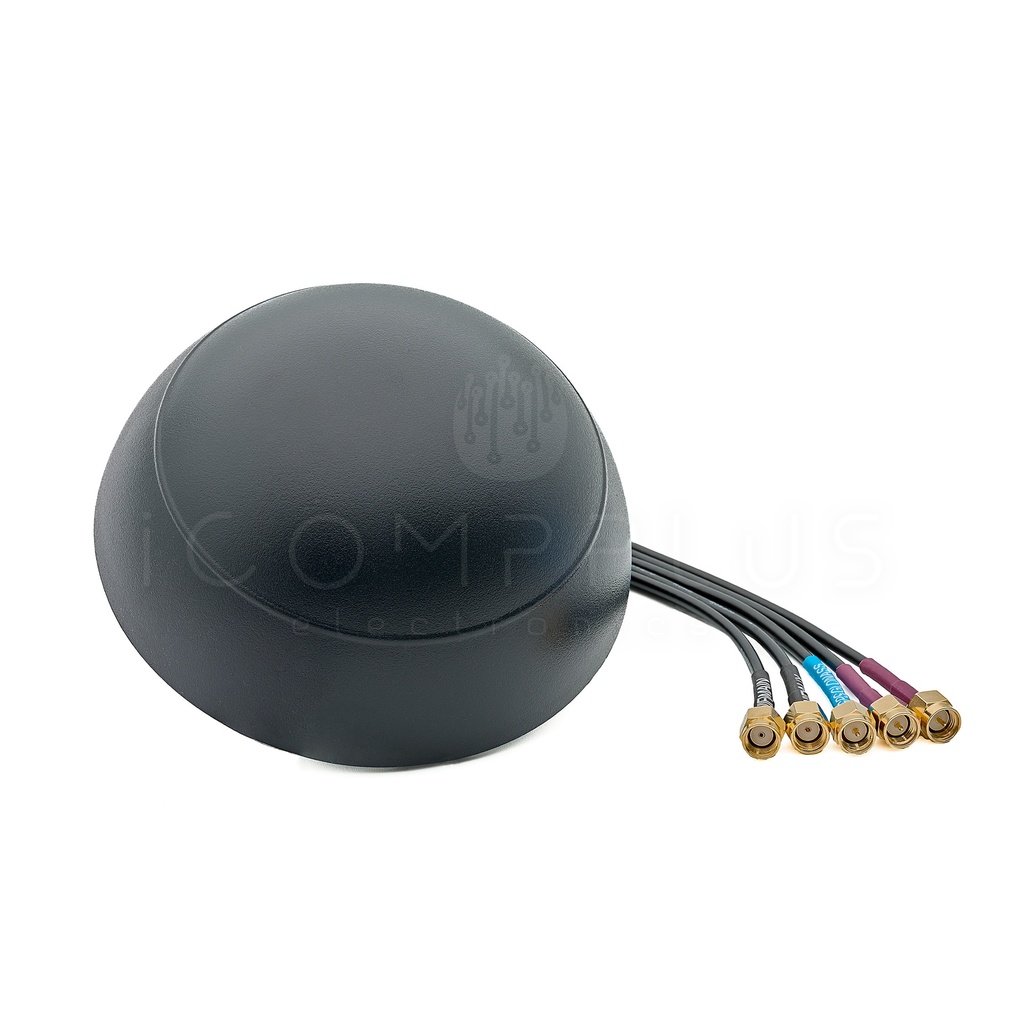

ANTENA DE TECHO MIMO COMBO GNSS/LTE/WIFI
Manufacturer Ref
PR1KCO28
Manufacturer
Category
Antennas
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
TELTONIKA
COO
CHINA
V.S.W.R LNA GNSS
Less than 2.0
GNSS Frequency Range
1575.42-1610 MHz
Connectivity Type
COMBO GNSS/LTE/WIFI
Impedance
50 Ω
V.S.W.R WIFI
Menorque 2.5
WIFI Frequency Range
2400 ~ 2483- 4900 ~ 5825 MHz
Cable
5x RG174
Operating Temperature
–40 °C ~ +85 °C
WIFI Gain
2.0dBi
LTE Connector Type
2x SMA Male
WIFI Connector Type
2x RP-SMA Male
5G gain
Bluetooth gain
LTE gain
3.0dBi
GNSS LNA gain
28 ± 2 dB
LTE Frequency Range
698 - 960 / 1710 - 2690 MHz
IP Protection
IP65
V.S.W.R LTE
Less than 3.0
GNSS Connector Type
SMA Male
Packaging
Box
ADDITIONAL INFORMATION
ANTENA DE TECHO MIMO COMBO GNSS/LTE/WIFI
GNSS ANTENNA |
|
| Frequency range | 1575 ~ 1610 MHz |
| Polarization | RHCP |
| Impedance | 50 Ω |
| LNA gain | 28 ± 2 dB |
| LNA noise figure | 1.5 dB |
| Supply voltage | 3.0 – 5.0 VDC |
| Current consumption | 15 mA |
| LNA VSWR | 2.0 |
| Connector type | SMA Male |
LTE MIMO ANTENNA |
|
| Frequency range | 698 ~ 960, 1710 ~ 2690 MHz |
| Polarization | Linear |
| Gain | 3.0 dBi |
| VSWR | 3.0 |
| Impedance | 50 Ω |
| Connector type | 2x SMA Male |
WIFI MIMO ANTENNA |
|
| Frequency range | 2400 ~ 2483, 4900 ~ 5825 MHz |
| Polarization | Linear |
| Gain | 2.0 dBi |
| VSWR | 2.5 |
| Impedance | 50 Ω |
| Connector type | 2x RP-SMA Male |
MECHANICAL/ENVIRONMENTAL |
|
| Mounting method | Screw |
| Radome ingress protection rating | IP65 |
| Radome material | Black ABS |
| Housing dimensions | Ø 110 x 55 mm |
| Cable | 5x RG174, 3000 mm |
| RoHS compliant | ✓ |
| Weight | 550 g |
PRODUCT DOCUMENTATION
Datasheet
