PR3PREU6
Description

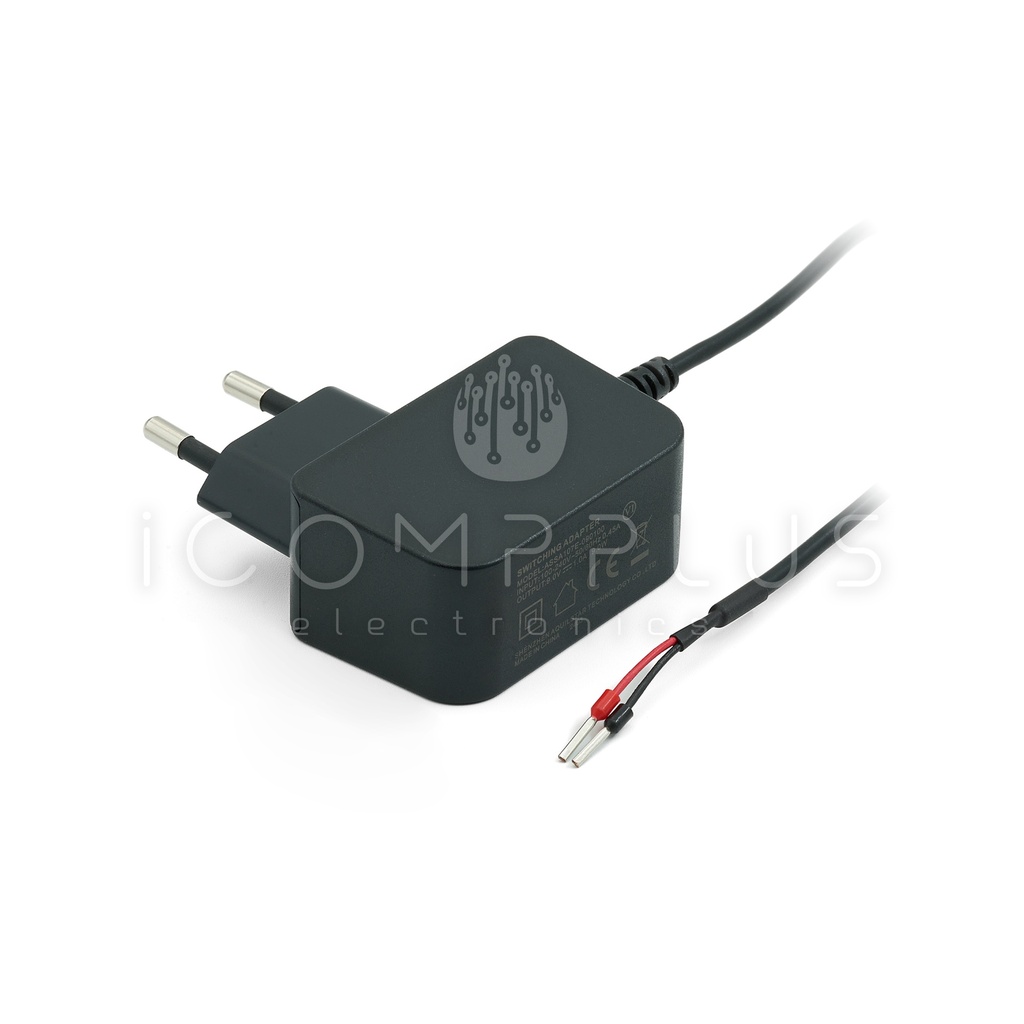

Power Supply EU 2-PIN 9W
Manufacturer Ref
PR3PREU6
Manufacturer
Category
Cables
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
TELTONIKA
COO
CHINA
Connector Input
EU (Type C)
Connector Output
2-pin, with cord end terminals
Frequency
50/60MHz
Weight
81g
Input Voltage
100 - 240 VAC
Output voltage
9VDC
Input current
0.45A
Output current
1.0A
Packaging
Bag
ADDITIONAL INFORMATION
Power Supply EU 2-PIN 9W
TECHNICAL DATA |
|
| GENERAL | |
| Input voltage | 100 – 240 VAC |
| Input frequency | 50 / 60 Hz |
| Input current | 0.45 A |
| Input connector | EU (Type C) |
| Output voltage | 9 VDC |
| Output current | 1.0 A |
| Output connector | 2-pin, with cord end terminals |
| Weight | 81 g |
| ADDITIONAL | |
| Input voltage range | 90 – 264 VAC |
| Input frequency range | 47 – 63 Hz |
| Maximum input inrush current | 60 A |
| Output voltage maximum deviation | 8.55 – 9.45 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
| MTBF | 30000 h |
| PSU efficiency standard | DoE Level VI |
| Certification | Safety: IEC 62368-1:2014, EN 62368-1:2014+A11:2017 (CB Scheme) |
| Certification | EMC: EN 55032:2015, EN 55035:2017 |
PRODUCT DOCUMENTATION
Datasheet
98202-98845.pdfPURCHASE INFORMATION
