SKA20420
Description

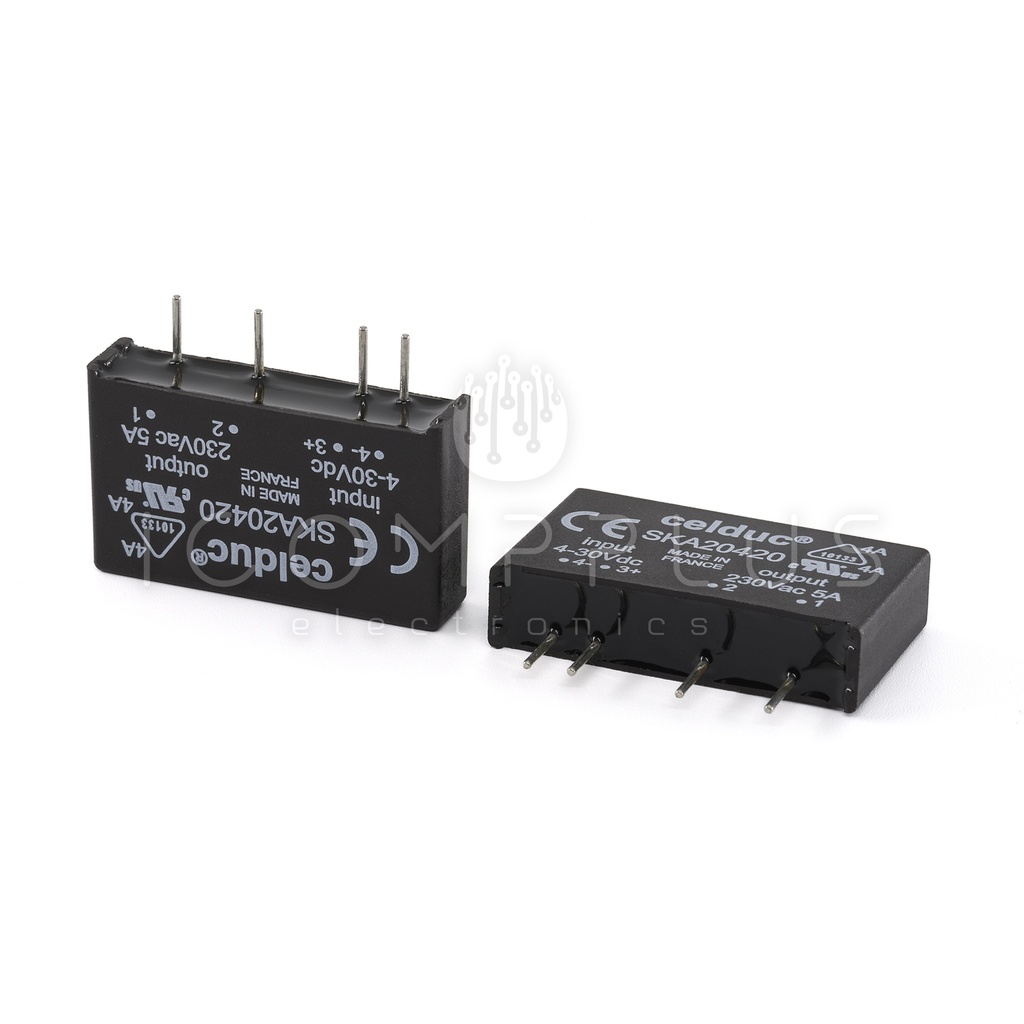

Solid State Relay SSR 5A/12-275VAC/CTRL 4-30VDC
Manufacturer Ref
SKA20420
Manufacturer
Category
Solid State Relays (SSR)
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
CELDUC
COO
FRANCE
Radio control voltage
4-30VDC
Termination Type
PIN PCB
Contact Configuration
SPST-NO (1 A-Form)
Standard
CE EAC UKCA UL (cURus)
Switching voltage
12-275VAC
Number of contacts
1 Single-phase
Type of Mounting
PCB
Package
Relay PCB
Output protection
VDR
Load current
5A
Category
Solid State Relay (SSR)
Packaging
Tube
Standard Package
20
ADDITIONAL INFORMATION
Solid State Relay SSR 5A/12-275VAC/CTRL 4-30VDC
PRODUCT DETAILS |
|
| Specifications | AC Zero cross output - with output protection |
| Thyristor rating | 5A |
| Max. switching current (A) | 5A |
| Type of mounting | PCB |
| Number of poles | 1- Single phase |
| Function | AC on/off Zero-Cross |
| Switching voltage rate | 12-275VAC |
| Control voltage rate | 4-30VDC |
| Standards | CE EAC UKCA UL (cURus) |
| Features | SSR 5A/12-275VAC/CTRL 4-30VDC/VDR |
| Type of relay (AC or DC) | AC |
| Series | SK |
| Output protection Type | VDR |
| Heatsink included | NO |
| Terminals (power) | “PCB” pins |
| Housing type | PCB relay |
| Application | (AC-1 / LC A) Heating elements |
| Application | (AC-3 / LC B) Motors |
| Application | (AC-5a / LC C) Discharge lamps |
| Application | (AC-5a / LC D) Incandescent light bulbs and infrared lamps |
| Application | (AC-5b/DC-6) LEDs |
| Application | (AC-14/AC-15/DC-13) Electrovalves and electromagnets |
| Application | (AC-14/AC-15/DC-13/DC-14) Contactors |
| Application | PLC Inputs/Outputs |
PRODUCT DOCUMENTATION
Datasheet
93054-93530.pdfPURCHASE INFORMATION
