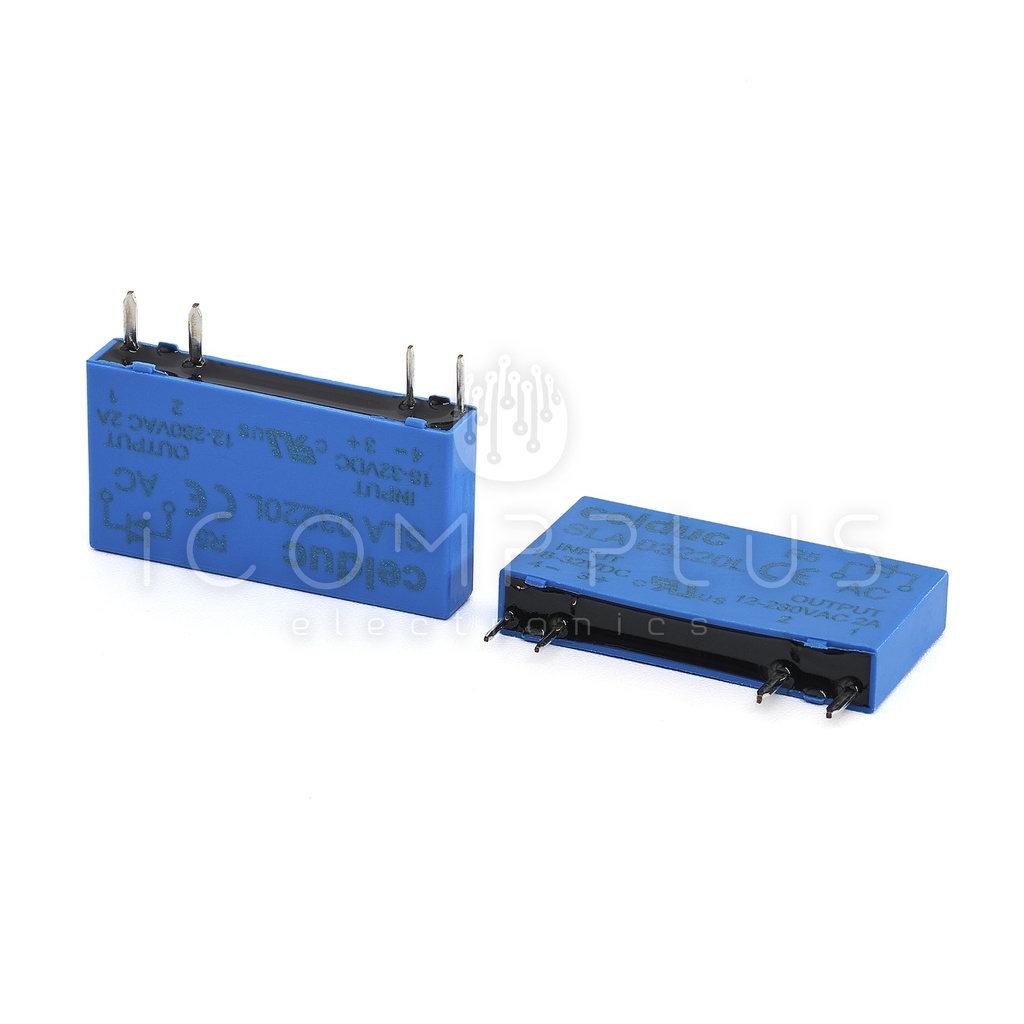

SLA03220L
Description
Solid State Relay SSR 2A/12-280VAC/CTRL18-32VDC
Manufacturer Ref
SLA03220L
Manufacturer
Category
Solid State Relays (SSR)
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
CELDUC
COO
FRANCE
Radio control voltage
18-32VDC
Termination Type
PIN PCB
Contact Configuration
SPST-NO (1 A-Form)
Standard
CE EAC UKCA UL (cURus)
Switching voltage
12-280VAC
Number of contacts
1 Single-phase
Type of Mounting
PCB
Package
Relay Interface
Load current
2A
Category
Solid State Relay (SSR)
Packaging
Tube
Standard Package
17
ADDITIONAL INFORMATION
Solid State Relay SSR 2A/12-280VAC/CTRL18-32VDC
PRODUCT DETAILS |
|
| Specifications | AC output module |
| Thyristor rating | 2A |
| Max. switching current (A) | 2A |
| Type of mounting | PCB |
| Number of poles | 1- Single phase |
| Function | AC on/off Random |
| Switching voltage rate | 12-280VAC |
| Control voltage rate | 18-32VDC |
| Standards | CE EAC UKCA UL (cURus) |
| Features | 2A/12-280Vac/Ctrl18-32Vdc/Low leakage current |
| Type of relay (AC or DC) | AC |
| Series | SP-ST-SL |
| Heatsink included | NO |
| Terminals (power) | “PCB” pins |
| Housing type | Interface relays |
| Application | (AC-1 / LC A) Heating elements |
| Application | (AC-3 / LC B) Motors |
| Application | (AC-14/AC-15/DC-13) Electrovalves and electromagnets |
| Application | (AC-14/AC-15/DC-13/DC-14) Contactors |
| Application | PLC Inputs/Outputs |
PRODUCT DOCUMENTATION
Datasheet
94301-94813.pdfPURCHASE INFORMATION
