SLD03205
Description

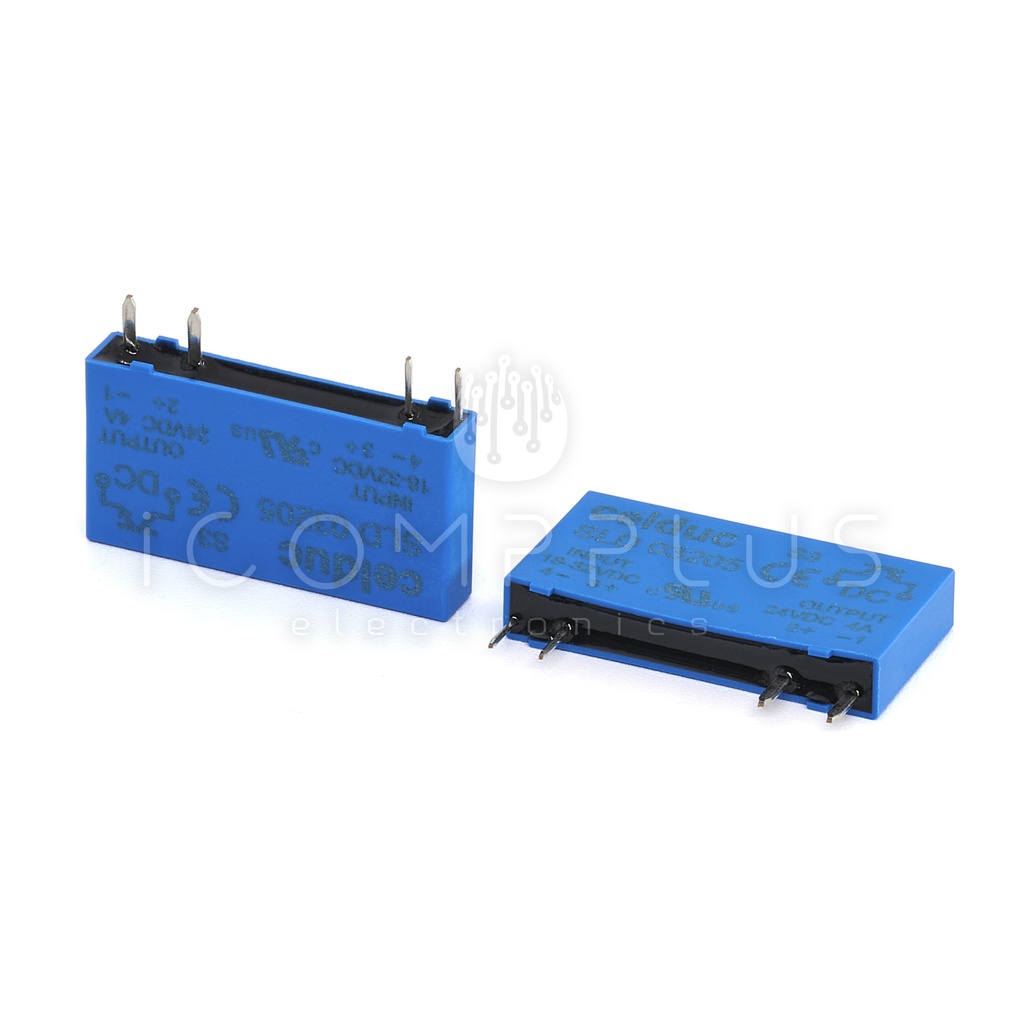

Solid State Relay SSR 4A/0-32VDC/CTRL 18-32VDC
Manufacturer Ref
SLD03205
Manufacturer
Category
Solid State Relays (SSR)
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
CELDUC
COO
FRANCE
Radio control voltage
18-32VDC
Termination Type
PIN PCB
Contact Configuration
SPST-NO (1 A-Form)
Standard
CE EAC UKCA UL (cURus)
Switching voltage
0-32VDC
Number of contacts
1 Single-phase
Type of Mounting
PCB
Package
Relay Interface
Load current
4A
Category
Solid State Relay (SSR)
Dynamic resistance at steady state (max)
120mOhms
Packaging
Tube
Standard Package
17
ADDITIONAL INFORMATION
Solid State Relay SSR 4A/0-32VDC/CTRL 18-32VDC
PRODUCT DETAILS |
|
| Specifications | MOSFET DC output module |
| Thyristor rating | 4A |
| Max. switching current (A) | 4A |
| Type of mounting | PCB |
| Number of poles | 1- Single phase |
| Function | DC on/off |
| Switching voltage rate | 0-32VDC |
| Control voltage rate | 18-32VDC |
| Standards | CE EAC UKCA UL (cURus) |
| Features | SSR 4A/0-32VDC/CTRL 18-32VDC |
| Type of relay (AC or DC) | DC |
| Series | SP-ST-SL |
| Heatsink included | NO |
| DC Technology | MOSFET |
| Terminals (power) | “PCB” pins |
| Housing type | Interface relays |
| Application | (AC-5a / LC D) Incandescent light bulbs and infrared lamps |
| Application | (AC-5b/DC-6) LEDs |
| Application | (AC-14/AC-15/DC-13/DC-14) Contactors |
| Application | PLC Inputs/Outputs |
