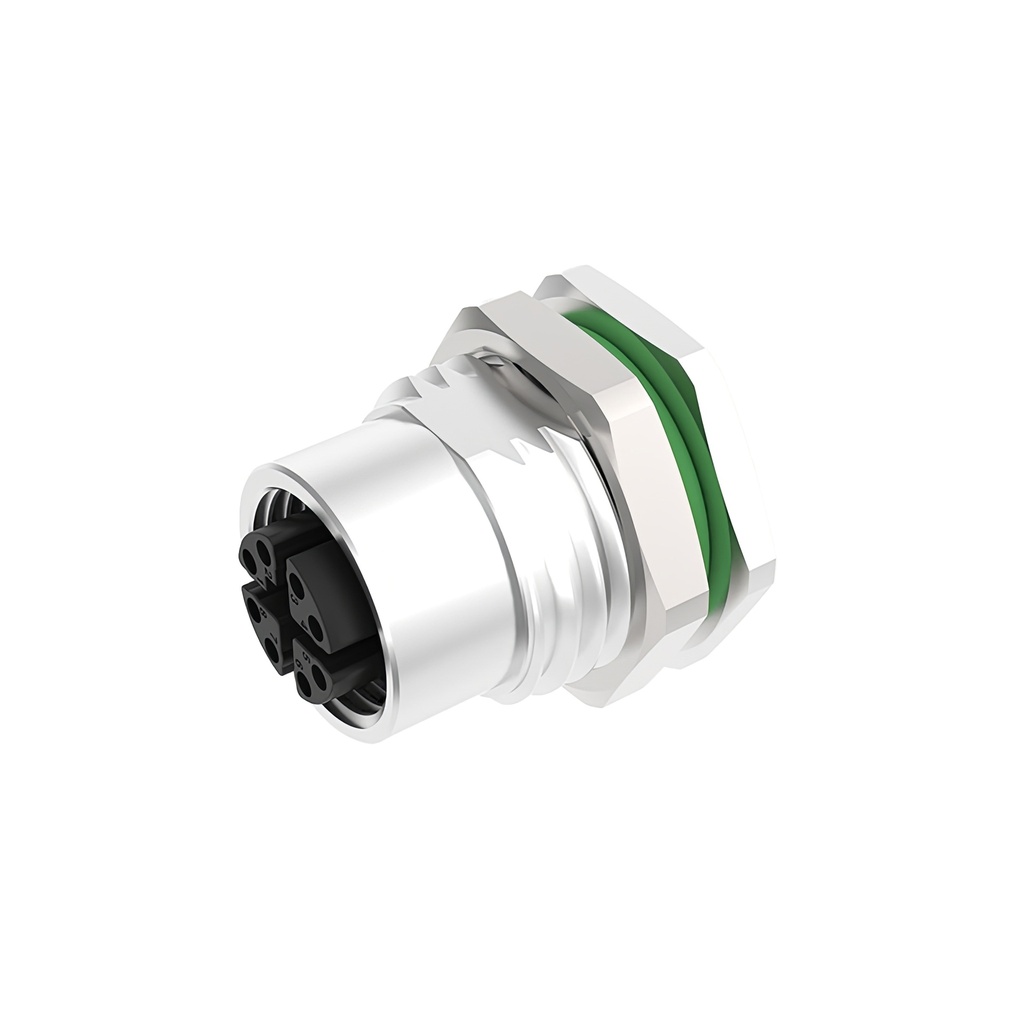

    SPSH-M12X-08P-FF-SF7002-00Z(H)

    SPSH-M12X-08P-FF-SF7002-00Z(H)

    https://icompplus.odoo.com/web/image/product.template/89850/image_1920?unique=58653b0

    SPSH-M12X-08P-FF-SF7002-00Z(H)

    Circular Connectors

    9.85 € 9.85 EUR 9.85 €

    9.85 €

    Not Available For Sale

    • Brand
    • COO
    • RoHS
    • Insulation Resistance
    • Number of Contacts
    • Connection Type
    • IP Protection
    • Nominal Current
    • Gender
    • Ambient Temperature Range
    • Esfuerzo de Torsión
    • Nivel de Sobretensión
    • Ciclo Inserción & Extracción
    • Codificación
    • Traceability
    • Packaging
    • Standard Package
    • Reach

    This combination does not exist.

    RoHS :
    Datasheet :
    : Conector Circular 8POS
    IN STOCK:
    THE DELIVERY WILL OCCUR WITHIN 24/48 HOURS AFTER THE STOCK ARRIVES AT OUR WAREHOUSE. View Options
    (Request a quote for large quantities or custom projects)

    TECHNICAL FEATURES

    Brand DEGSON
    COO CHINA
    Insulation Resistance ≥ 100 MΩ
    Number of Contacts 8
    Connection Type Solder Pin
    IP Protection IP67
    Nominal Current 0.5A
    Gender Female
    Ambient Temperature Range -20°C ~ 105°C
    Esfuerzo de Torsión 0.4N.m
    Nivel de Sobretensión 2
    Ciclo Inserción & Extracción ≥ 100
    Codificación X
    Packaging Bag
    Standard Package 100
    Reach Yes

    PRODUCT DESCRIPTION

    Conector Hembra M12 8 polos codificación X blindado


    Environmental conditions
    Ambient temperature  -20ºC...105ºC
    IP class IP67

    General parameters
    Rated current 0.5A
    Rated current 50V
    Number of potentials 8
    Insulation resistance ≥ 100 MΩ
    Error-proof coding X-Code
    Overvoltage level Ⅱ
    Pollution level 3
    Connection method Soldering pin
    Insertion and pullout cycle 100
    Torque 0.4 Nm
    Type of installation Rear board installation

    Material
    Flammability rating ,in line with UL94 V0
    Contact material CuZn
    Material contact surface Au
    Contact carrier material PA
    Coil material Zinc alloy, nickel plated
    Sealing material Silicon

    Standards and specifications
    Standards/specifications IEC 61076-2-109



    PRODUCT DOCUMENTATION

    Datasheet
