TSW100
Description

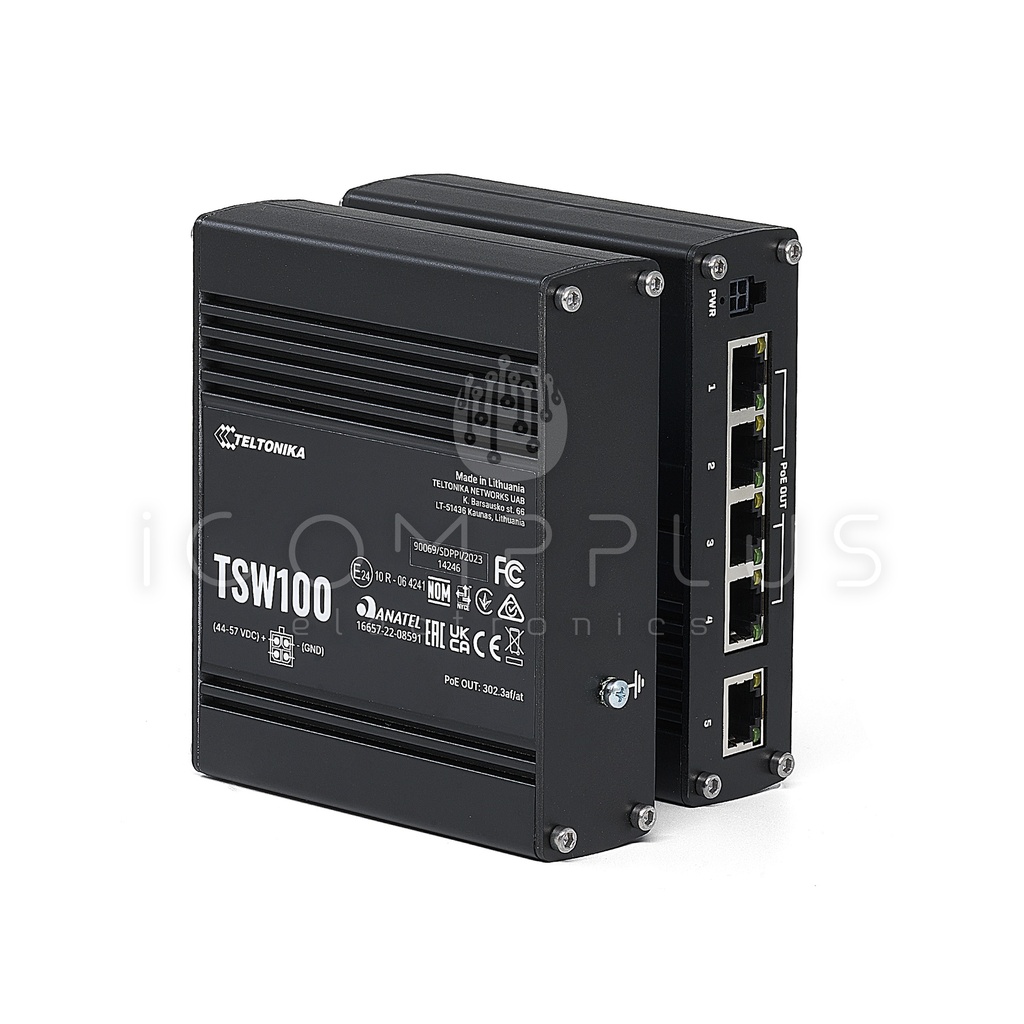

Teltonika TSW100 Industrial PoE+ Gigabit Ethernet Switch
Manufacturer Ref
TSW100
Manufacturer
Category
Switches
RoHS Status
RoHS Compliant
TECHNICAL SPECIFICATIONS
Brand
TELTONIKA
Power Connector
4-PIN INDUSTRIAL DC
Switch Type
PoE+
,
PoE+
Profinet (Class b)
Class A
Size MAC Addresses
2K (Input)
Ports PoE
Port 1 - 4
PoE Standard
802.3af and 802.3at
Operating Temperature
–40 °C ~ +75 °C
Bandwidth
10 Gbps
Type of Regulation
CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB
Ethernet Standard
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Buffer
128 KB
PoE Input Voltage
44 - 57 VDC
Weight
350g
Input voltage
7 - 57 VDC
Ethernet ports
5 PORTS x ETH 10/100/1000 Mbps
Ethernet speed
10/100/100 Mbps ports
Ethernet / IP
NO
IP Protection
IP30
Packaging
Box
ADDITIONAL INFORMATION
Teltonika TSW100 Industrial PoE+ Gigabit Ethernet Switch
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
PRODUCT DOCUMENTATION
Datasheet
