TAP100 - with PSU
Descripción
Punto de acceso Wi-Fi 4
Fabricante Ref
TAP100 - with PSU
Fabricante
Categoría
Punto de Acceso
Estado de RoHS
Conforme a RoHS
ESPECIFICACIONES TÉCNICAS
Marca
TELTONIKA NETWORKS
COO
LITUANIA
Antena Wi-Fi
2x Ant internal 2.4GHz Wi-Fi
Antena
2x Ant internal 2.4GHz Wi-Fi
Memoria RAM
64MB DDR2
Memoria de Almacenamiento FLASH
16MB SPI NOR Flash
Protocolos de Red
SSH IPv6 IPv4 ARP SSL/TLS HTTPS HTTP ICMP UDP TCP
Wi-Fi
Wi-Fi 4
Estándar PoE
802.3af PoE Clase 1
Temperatura de funcionamiento
-40 °C ~ +75 °C
CPU
MEDIATEK MIPS 24Kc 580 MHz
Tipo de Regulación
CE, CB, RCM, FCC, IC,EAC, UCRF
Estándar Inalámbrico
IEEE 802.11b/g/n (Wi-Fi 4)
Puertos Ethernet
1 x RJ-45 10/100Mbps
Voltaje de entrada
44.0 - 57.0 V
Velocidad Ethernet
10/100 Mbps ports
Protección IP
IP30
Empaquetado
Caja
INFORMACIÓN ADICIONAL
Punto de acceso Wi-Fi 4

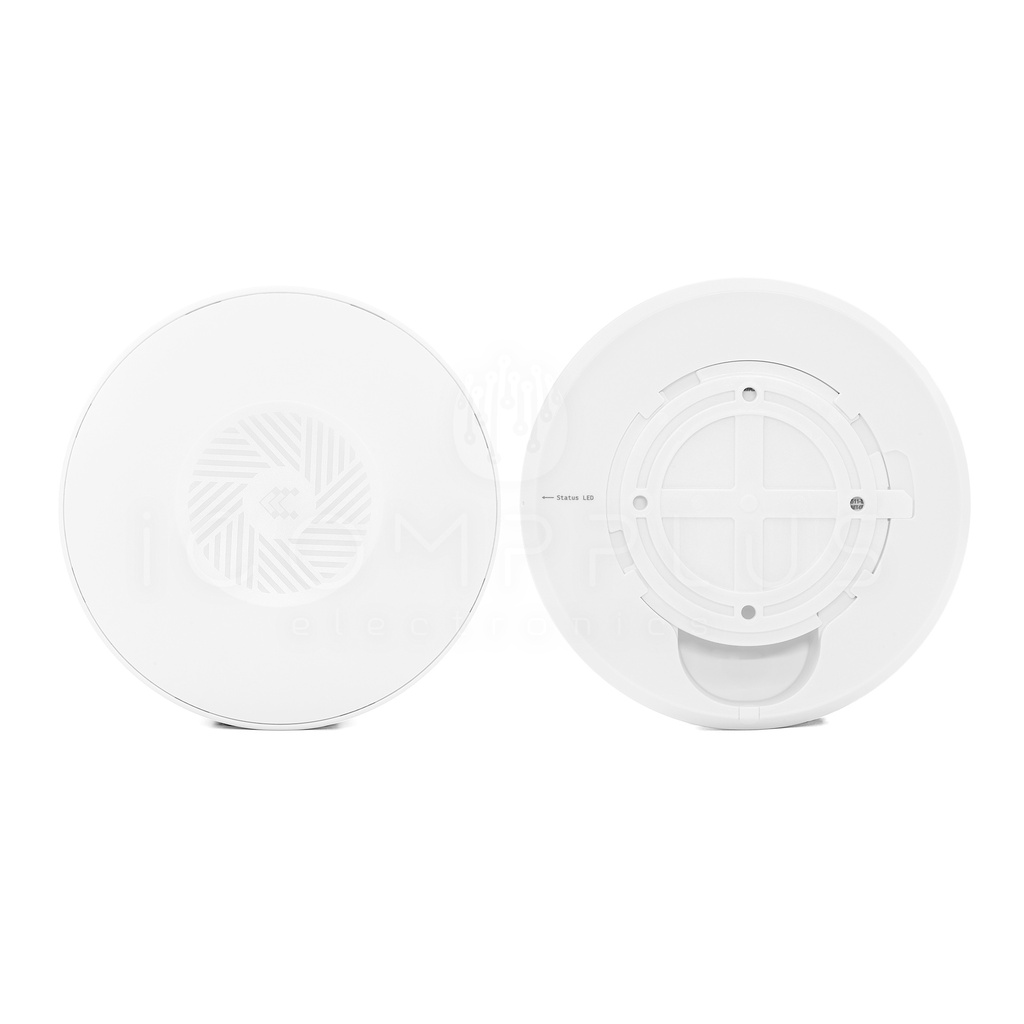

El TAP100 es el primer punto de acceso de Teltonika Networks, perfecto para reforzar la cobertura Wi-Fi en pequeñas empresas y espacios comerciales. Este punto de acceso PoE-in puede ser alimentado por dispositivos PoE activos a través de su puerto RJ45 y fue diseñado pensando en la simplicidad y facilidad de instalación.
WIRELESS |
|
| Wireless mode | IEEE 802.11b/g/n (Wi-Fi 4) |
| Wi-Fi security | WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE, WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 100 simultaneous connections |
| Wireless mesh/roaming | Fast roaming (802.11r) |
| Wireless MAC filter | Whitelist, blacklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information. |
ETHERNET |
|
| Ethernet | 1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| NETWORK | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH, DHCP client |
| SECURITY | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
| VLAN | Tag-based VLAN separation |
MONITORING & MANAGEMENT |
|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS |
|
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 64 MB, DDR2 |
| FLASH storage | 16 MB, SPI Flash |
FIRMWARE / CONFIGURATION |
|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMISATION |
|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| GPL customization | You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs. |
POWER |
|
| Connector | RJ45 Socket |
| Input voltage range | 44.0 – 57.0 V |
| PoE standards | 802.3af PoE Class 1 |
| Power consumption | < 2 W Max |
PHYSICAL INTERFACES |
|
| Ethernet | 1 x RJ45 ports, 10/100 Mbps |
| Status LEDs | 1 x Power LED (can be turned off from web-UI) |
| Antennas | 2 x Internal for 2.4 GHz Wi-Fi |
| Reset | Reboot/User default reset/Factory reset button |
PHYSICAL SPECIFICATION |
|
| Casing material | UV stabilized plastic |
| Dimensions | Ø 158 mm x 30 mm |
| Weight | 190 g |
| Mounting options | AP Mounting Bracket (for ceiling mount) |
OPERATING ENVIRONMENT |
|
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS |
|
| Regulatory | CE, UKCA, CB, FCC, IC, WEEE |
EMC EMISSIONS & IMMUNITY |
|
| Standards | EN 55032:2015+A11:2020 |
| Standards | EN 55035:2017+A11:2020 |
| Standards | EN 61000-3-3:2013+A1:2019+A2:2021 |
| Standards | EN IEC 61000-3-2:2019+A1:2021 |
| Standards | EN 301 489-1 V2.2.3 |
| Standards | EN 301 489-17 V3.2.4 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| EFT | EN 61000-4-4:2012 |
| Surge protection | EN 61000-4-5:2014+A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
RF |
|
| Standards | EN 300 328 V2.2.2 |
SAFETY |
|
| Standards | IEC 62368-1:2018 |
| Standards | EN IEC 62368-1:2020+A11:2020 |
| Standards | EN IEC 62311:2020 |
