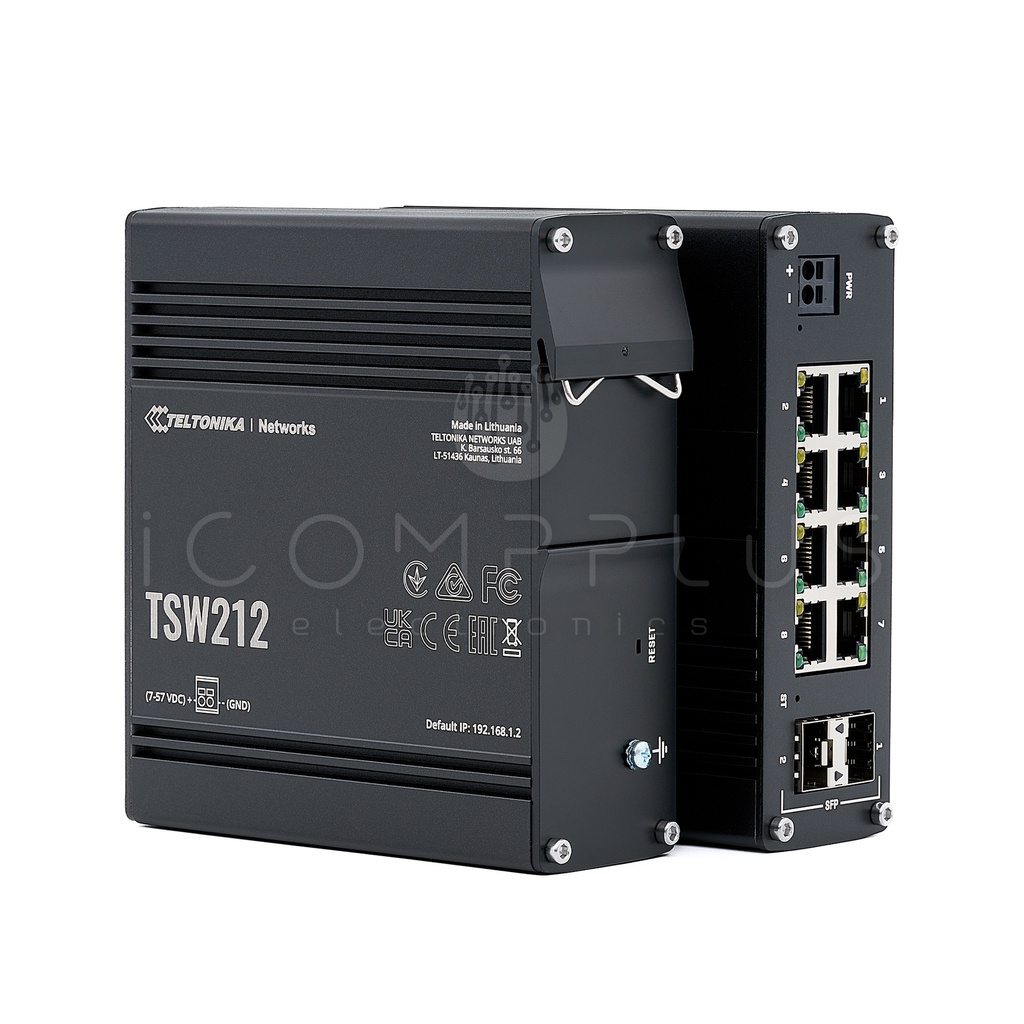

ETHERNET
|
|
ETH |
Multi-layer
managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
Fibre |
2
x SFP ports |
IEEE 802.3
series standards |
IEEE
802.1p, IEEE 802.1Q, 802.3az |
SERVICES
|
|
EtherNet/IP |
Yes |
Profinet
(class B) |
Yes |
SNMP V2, V3 |
Yes |
LLDP |
Yes |
NETWORK
|
|
MRP |
MRP
client role, MRP manager role |
L2 features |
Loop
protection, Forwarding table, VLAN, STP/RSTP |
DHCP |
DHCP
server, DHCP client |
Port Settings |
Enable/disable,
link speed control, port isolation, EEE (802.3az) management, Port Mirroring |
L3 Features |
Static
IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
QOS
|
|
QOS |
Port
priority, DSCP priority, 802.1p priority, TOS |
Scheduling
method |
SP/WFQ/WRR |
Bandwidth
control |
Rate
limiting, storm control |
Traffic
Shaper |
Port-based
shaping |
DIAGNOSTICS
|
|
Tools |
Cable
diagnostic, ping, traceroute, nslookup |
SYSTEM CHARACTERISTICS
|
|
RAM |
128MB,
DDR3 |
FLASH storage |
16
MB serial flash |
FIRMWARE / CONFIGURATION
|
|
WEB UI |
Update
FW from file, check FW on server, configuration profiles, configuration
backup |
FOTA |
Update
FW |
RMS |
Update
FW/configuration for multiple devices at once |
Keep settings |
Update
FW without losing current configuration |
FIRMWARE CUSTOMISATION
|
|
Operating
system |
TSWOS
(OpenWrt based Linux OS) |
Supported
languages |
Busybox
shell, Lua, C, C++ |
Development
tools |
SDK
package with build environment provided |
PERFORMANCE SPECIFICATIONS
|
|
Bandwidth
(Non-blocking) |
20
Gbps |
Forwarding
rate |
14.88
Mpps |
Packet buffer |
512
KB |
MAC address
table size |
8K
entries |
Jumbo frame
support |
10000
bytes |
POWER
|
|
Connector |
2-pin
industrial DC power socket |
Input voltage
range |
7
– 57 VDC |
Power
consumption |
Idle:
< 2.5 W / Max: 6 W |
PHYSICAL INTERFACES
|
|
Ethernet |
8
x RJ45 ports, 10/100/1000 Mbps |
Fibre |
2
x SFP ports |
Status LEDs |
1
x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
Power |
1
x 2-pin industrial DC power socket |
Reset |
Software
reset button |
Other |
1
x Grounding screw |
PHYSICAL SPECIFICATION
|
|
Casing
material |
Anodized
aluminum housing and panels |
Dimensions (W
x H x D) |
132
x 44.2 x 122.2 mm |
Weight |
615
g |
Mounting
options |
Integrated
DIN rail bracket, wall mounting (additional kit needed), flat surface
placement |
OPERATING ENVIRONMENT
|
|
Operating
temperature |
-40
°C to 75 °C |
Operating
humidity |
10%
to 90% non-condensing |
Ingress
Protection Rating |
IP30 |
REGULATOREGULATORY & TYPE APPROVALS
|
Regulatory |
CE,
UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH |
EMC EMISSIONS & IMMUNITY
|
|
Standards |
EN
55032:2015 + A11:2020 + A1:2020 |
Standards |
EN 55035:2017 + A11:2020 |
Standards |
EN IEC 61000-3-2: 2019 + A1:2021 |
Standards |
EN 61000-3-3: 2013 + A1:2019 + A2:2021 |
ESD |
EN
61000-4-2:2009 |
Radiated
Immunity |
EN
IEC 61000-4-3:2020 |
EFT |
EN
61000-4-4:2012 |
Surge
Immunity (AC Mains Power Port) |
EN
61000-4-5:2014 + A1:2017 |
CS |
EN
61000-4-6:2014 |
DIP |
EN
61000-4-11:2020 |
SAFETY
|
|
Standards |
CE: EN IEC 62368-1:2020 + A11:2020 |
Standards |
RCM: AS/NZS 62368.1:2022 |
Standards |
CB: IEC 62368-1:2018
|
